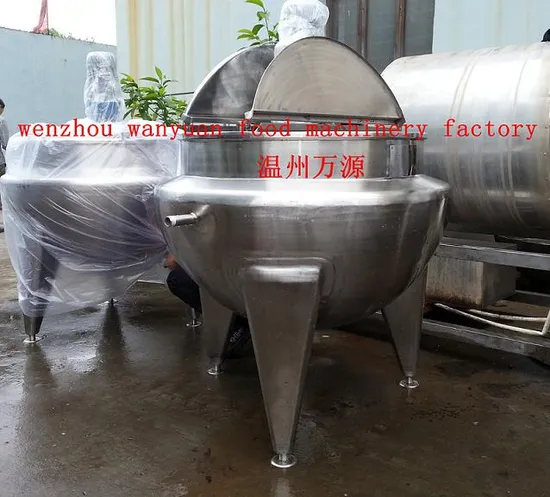

600 liters vertical steam heating jacketed kettle
1. Cooking kettle made of stainless steel
2. Jacketed pot with customized cooking capacity
3. Steam heating
Jacketed kettle / jacketed pot / cooking kettle
Jacketed kettle is a kind of cooking and mixing device used in dairy proess and beverage production.
You can produce tomato paste, puree, milk, and many other products by jacketed cooking kettle.
Also, you can make soup by our cooking kettles or cooking pan.
Steam heating jacketed kettle capacity:
As a manufacture of steam jacketed kettle<cooking pot or jacketed cooking vat>, wenzhou longwan wanyuan food machinery offer different cooking kettle capacity according to your request.
You can choose 50L cooking kettle, 100L cooking kettle, or 200L cooking pot. You can also choose any other customized capacity cooking kettle.
Cooking kettle capacity can be 50Liter to 600Liters.
If you need big capacity steam cooking kettle, such as 1500L double layer cooking kettle, we can also offer.
Wenzhou wanyuan food machinery factory-Jacketed kettle
Here below is our steam heating jacketed kettle specification:
| Model | GTJ-100 | GTJ-200 | GTJ-300 | GTJ-500 | GTJ-600 |
| Volume (L) | 100 | 200 | 300 | 500 | 600 |
| Pot Size (mm) | Φ700×530 | Φ800×580 | Φ900×630 | Φ1100×730 | Φ1200×780 |
| Working Pressure(MPa) | ≤0.3(jacket) |
| Working Temperature | ≤100 degree C (material in pot)
≤143 degree C(jacket) |
| Blending Speed (r/min) | 35 |
| Steam Inlet(DN) | 20 | 20 | 20 | 25 | 25 |
| Heating Area(m2) | 0.7 | 0.95 | 1.2 | 1.8 | 2.2 |
| Evaporative Power(kg/h) | 45 | 80 | 100 | 140 | 160 |
| Steam Consumption (kg/h) | 50 | 90 | 112 | 160 | 182 |
| Motor Power (KW) | 0.37 | 0.55 | 0.55 | 1.1 | 1.1 |
| Dimension(cm) | 115×80×100 | 135×90×107 | 145×100×115 | 165×120×136 | 176×130×146 |
| Weight(kg) | 180 | 200 | 220 | 290 | 320
|
