500L Steam Heating Jacketed Brew Kettle

Customization:	Available
Type:	Cooking and Mixing
Voltage:	Customized

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

GTJ-500

Customized

Jacketed Kettle Usage

Cooking and Mixing

Heating Type

Steam Heating

Min. Cooking Kettle Capacity

50L

Max Cooking Kettle Capacity

1500L

Agitator / Stirrer

with Agitator

Transport Package

Wooden Case

Origin

Wenzhou China

Product Description

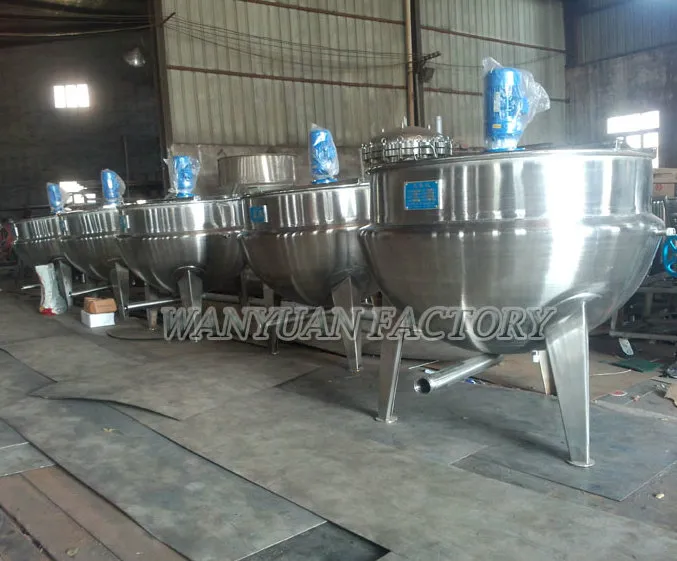

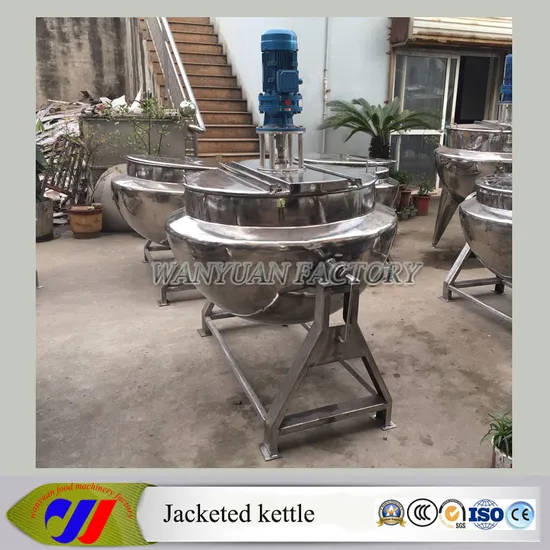

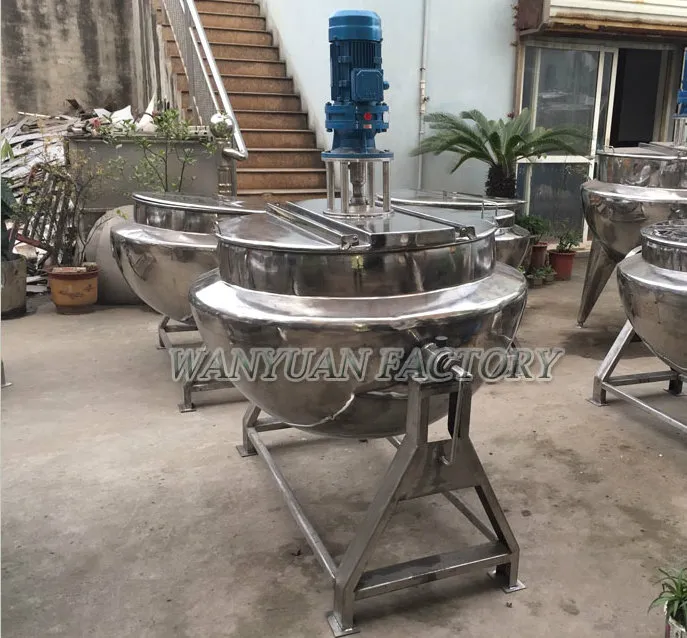

500L steam heating jacketed brew kettle
1. According to Structure: Tilting Jacketed Kettle and Vertical Jacketed Kettle
2. According to Heating: Electric Heating Jacketed Kettle, Steam Heating Jacketed Kettle and Gas Heating Jacketed Kettle
3. According to Process Need: Jacketed Kettle with Agitating and Jacketed Kettle without Agitating

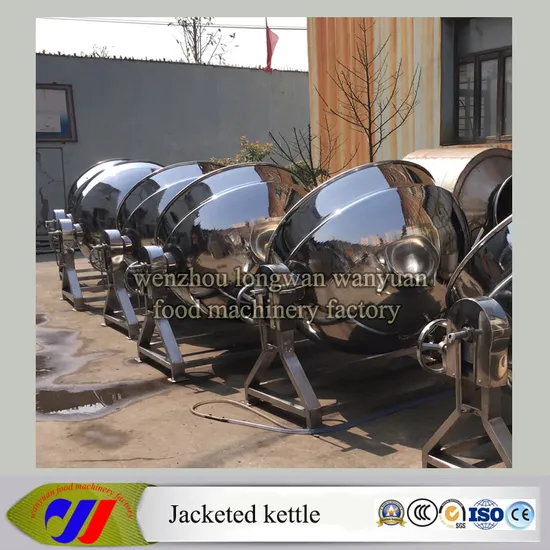

Tilting Jacketed Kettle is mainly composed of pot and tilting frame; And the pot is the double layer structure formed by inside and outside spherical pot; Middle layer can add steam to heat.

500L Steam Heating Jacketed Brew Kettle

Material:
A) Common Jacketed Kettle Stainless steel inner pot(SUS304/SUS316L), carbon steel outer pot (Q235-B) treated with anti-rust paint
B) All Stainless Steel Jacketed Kettle. The whole machine is made of stainless steel (SUS304/SUS316L)
Characteristics:
1. Efficient Heating
Steam heating jacketed kettle takes a certain pressure of steam as heat source. It has characteristics such as big heating area, uniform heating, high thermal efficiency, short boiling time, easy control of the heating temperature etc.
2. Safety and Convenience
Steam heating jacketed kettle adopts stainless steel 304 as production material, which is resistant to heat and acid. The machine is equipped with pressure gauge, safety valve or electrical control box. Not only has good-appearance, but also easy to install and operate. The jacketed boiler is safe and convenient.

Wenzhou Wanyuan Food Mechanical Factoy
500L steam heating jacketed brew kettle

Model	GTJ-50	GTJ-100	GTJ-200	GTJ-300	GTJ-400	GTJ-500	GTJ-600
Volume (L)	50	100	200	300	400	500	600
Pot Size (mm)	Φ600×480	Φ700×530	Φ800×580	Φ900×630	Φ1000×680	Φ1100×730	Φ1200×780
Working Pressure (MPa)	≤0.3(jacket)
Working Temperature c	≤100(material in pot)≤143(jacket)
Blending Speed (r/min)	35
Steam Inlet (DN)	15	20	20	20	25	25	25
Heating Area (stere)	0.5	0.7	0.95	1.2	1.5	1.8	2.2
Evaporative Power (kg/h)	30	45	80	100	125	140	160
Steam Consumption (kg/h)	35	50	90	112	140	160	182
Blender Power (KW)	0.37	0.37	0.55	0.55	0.75	1.1	1.1
Dimension (cm)	105×70×95	115×80×100	135×90×107	145×100×115	155×110×125	165×120×136	176×130×146
Weight(kg)	150	180	200	220	260	290	320
