Tilting Type Jacketed Kettle with Agitator and Scraper

Customization:	Available
Usage:	Biscuit, Cake, Pizza
Power Source:	Steam

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

DG300

Type

Mixer

Voltage

110V/220V/380V/415V

Customized

Cooking Kettle Capacity

50liter to 600L Customized

Cooking Pot Structure

Double Layer Made of Stainless Steel

Agitator

with / Without Agitator, Customized

Cooking Method

Steam

Way of Discharge

Drainage From Bottom / Tiltable

Construction Material

SS304 / SS316L

Certificate

Ce ISO

Transport Package

Wooden Case

Specification

SS304/SS316

Trademark

Wanyuan

Origin

Wenzhou China

HS Code

8479819000

Production Capacity

5000

Product Description

Tilting type jacketed kettle with agitator and scraper
1. Cooking kettle made of SUS304 or SUS316
2. Jacketed pot with customized cooking capacity: 50-600L
3. Steam heating / electric heating / gas heating

Jacketed kettle / jacketed pot / cooking kettle
Jacketed kettle is a kind of cooking and mixing device used in dairy proess and beverage production.
You can produce tomato paste, puree, milk, and many other products by jacketed cooking kettle.
Also, you can make soup by our cooking kettles or cooking pan.

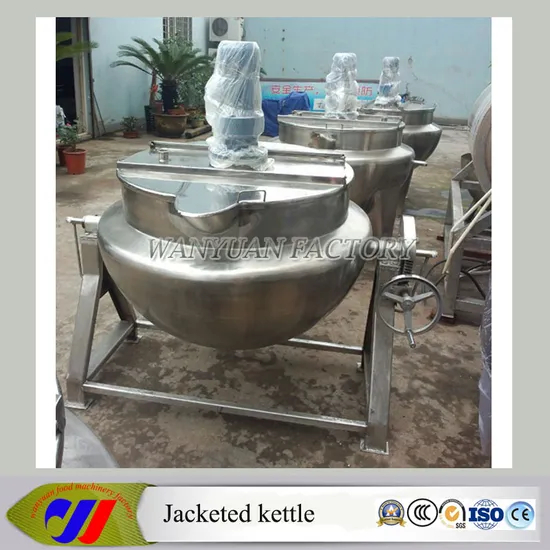

Gas heating jacketed kettle picture:

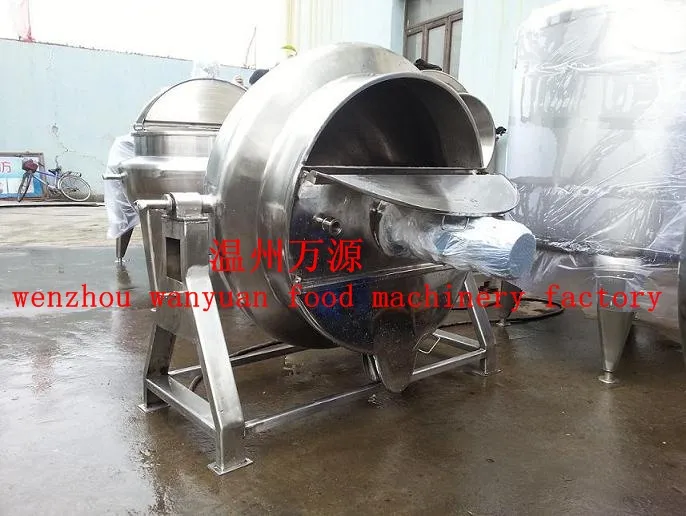

This is tilting type
Tilting Type Jacketed Kettle with Agitator and Scraper

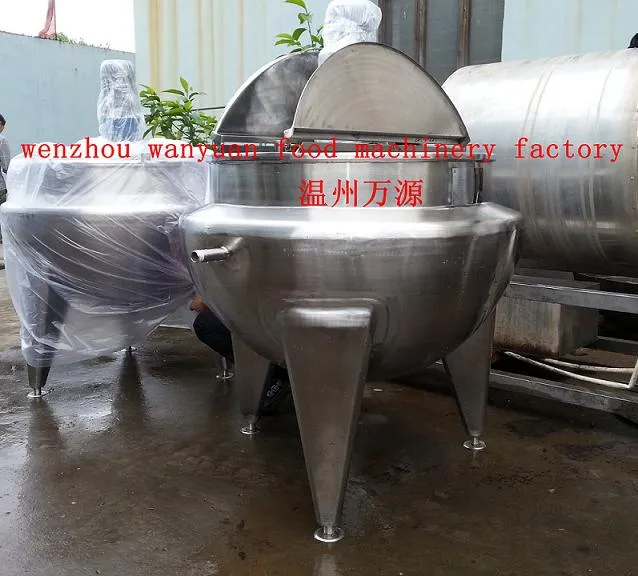

Vertical type:
Tilting Type Jacketed Kettle with Agitator and Scraper

Polishing effect:
Tilting Type Jacketed Kettle with Agitator and Scraper

Wenzhou wanyuan food machinery factory-Jacketed kettle
Here below is our steam heating jacketed kettle specification

Model	GTJ-100	GTJ-200	GTJ-300	GTJ-500	GTJ-600
Volume (L)	100	200	300	500	600
Pot Size (mm)	Φ700×530	Φ800×580	Φ900×630	Φ1100×730	Φ1200×780
Working Pressure(MPa)	≤0.3(jacket)
Working Temperature	≤100 degree C (material in pot) ≤143 degree C(jacket)
Blending Speed (r/min)	35
Steam Inlet(DN)	20	20	20	25	25
Heating Area(m2)	0.7	0.95	1.2	1.8	2.2
Evaporative Power(kg/h)	45	80	100	140	160
Steam Consumption (kg/h)	50	90	112	160	182
Motor Power (KW)	0.37	0.55	0.55	1.1	1.1
Dimension(cm)	115×80×100	135×90×107	145×100×115	165×120×136	176×130×146
Weight(kg)	180	200	220	290	320
