Tilting & Agitation Jacketed Kettle Cooking Pot

Customization:	Available
Type:	Cooking and Mixing
Voltage:	380V

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

DG-200

Customized

Cooking Kettle Capacity

50liter to 600L Customized

Cooking Pot Structure

Double Layer Made of Stainless Steel

Agitator

with / Without Agitator, Customized

Way of Discharge

Drainage From Bottom / Tiltable

Construction Material

Ss304 / Ss316

Transport Package

Wooden Case

Specification

CE

Origin

Wenzhou China

Product Description

Tilting & Agitation Jacketed Kettle cooking kettle cooking pot
Classification:
1. According to Structure: Tilting Jacketed Kettle and Vertical Jacketed Kettle
2. According to Heating: Electric Heating Jacketed Kettle, Steam Heating Jacketed Kettle and Gas Heating Jacketed Kettle
3. According to Process Need: Jacketed Kettle with Agitating and Jacketed Kettle without Agitating

Usage:
1. Be widely applied in food processing such as candy, medicine, dairy, alcohol, cake, sweetmeat, beverage, can, etc.
2. Can be used to boil soup, cook, stew and porridge in some large restaurants and canteens. It is considered to be the ideal equipment in the area of improving quality, shortening the time and improving working conditions.

Structure:
Tilting Jacketed Kettle is mainly composed of pot and tilting frame; And the pot is the double layer structure formed by inside and outside spherical pot; Middle layer can add steam to heat.

Material:
A) Common Jacketed Kettle Stainless steel inner pot(SUS304/SUS316L), carbon steel outer pot (Q235-B) treated with anti-rust paint
B) All Stainless Steel Jacketed Kettle The whole machine is made of stainless steel (SUS304/SUS316L)

Characteristics:
1. Efficient Heating
Steam heating jacketed kettle takes a certain pressure of steam as heat source. It has characteristics such as big heating area, uniform heating, high thermal efficiency, short boiling time, easy control of the heating temperature etc.
2. Safety and Convenience
Steam heating jacketed kettle adopts stainless steel 304 as production material, which is resistant to heat and acid. The machine is equipped with pressure gauge, safety valve or electrical control box. Not only has good-appearance, but also easy to install and operate. It is safe and convenient.

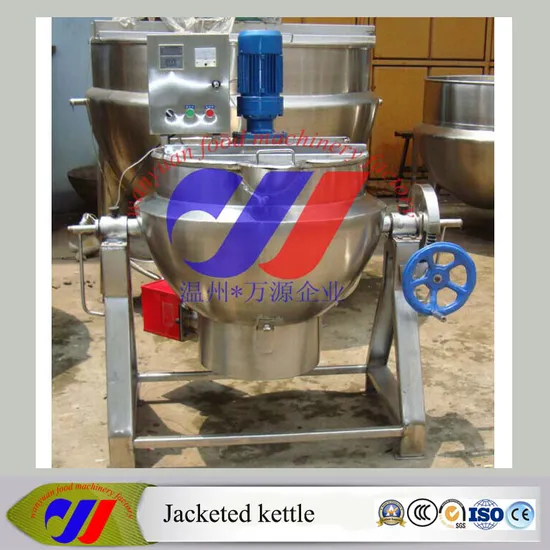

Tilting & Agitation Jacketed Kettle Cooking Pot

Wenzhou wanyuan food machinery factory- - Jacketed kettle
Cooking kettle / cooking pan / cooking vat
Here below is the specification of our 100L cooking kettle and 200L electric heating cooking kettle
If you need more details, you can contact me feel free!

Model		DG-200	DG-100
Jacketed pot	diameter(mm)	Φ800	Φ700
Jacketed pot	depth(mm)	550	500
Total capacity (L)		200	100
Material in/out pipe		1/2"	3/4"
Heating power(kw)		12	18
Boiling time (min)		~13	~10
Heating area(m2)		1.13	0.58
Design temperature (degree C)		180	180
Max working temp (degree C)		151	151
Design pressure (MPa)		0.095	0.095
Max working pressure(MPa)		0.095	0.095
Max tilting Angle		90°	90°
overall dimension	Length (mm)	1100	1000
	Width (mm)	850	750
	Height (mm)	1450	1100
FOB Price		/	/
