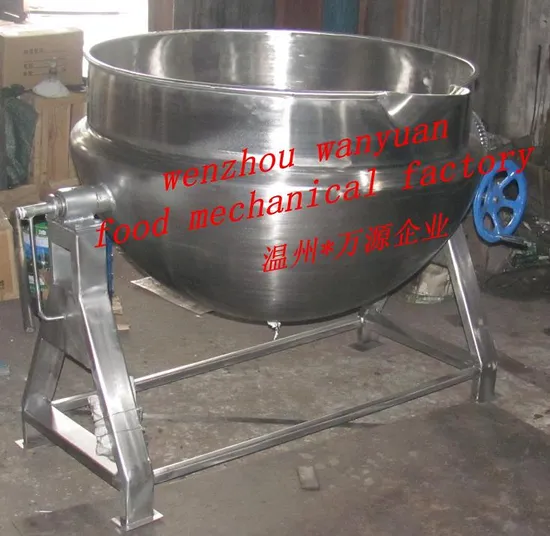

Stainless steel vertical steam heating cooking pot
Structure:
Vertical Jacketed Kettle is mainly composed of pot and stents; And the pot is the double layer structure formed by inside and outside spherical pot; Middle layer can add steam to heat.
Common Jacketed Kettle Stainless steel inner pot(SUS304/SUS316L), carbon steel outer pot (Q235-B) treated with anti-rust paint. All Stainless Steel Jacketed Kettle The whole machine is made of stainless steel (SUS304/SUS316L)
Usage: Be widely applied in food processing such as candy, medicine, dairy, alcohol, cake, sweetmeat, beverage, can, etc.
2. Can be used to boil soup, cook, stew and porridge in some large restaurants and canteens. It is considered to be the ideal equipment in the area of improving quality, shortening the time and improving working conditions.
| Model | GTJ-100 | GTJ-200 | GTJ-300 | GTJ-500 | GTJ-600 |
| Volume (L) | 100 | 200 | 300 | 500 | 600 |
| Pot Size (mm) | Φ700×530 | Φ800×580 | Φ900×630 | Φ1100×730 | Φ1200×780 |
| Working Pressure(MPa) | ≤0.3(jacket) |
| Working Temperature | ≤100 degree C (material in pot)
≤143 degree C(jacket) |
| Blending Speed (r/min) | 35 |
| Steam Inlet(DN) | 20 | 20 | 20 | 25 | 25 |
| Heating Area(m2) | 0.7 | 0.95 | 1.2 | 1.8 | 2.2 |
| Evaporative Power(kg/h) | 45 | 80 | 100 | 140 | 160 |
| Steam Consumption (kg/h) | 50 | 90 | 112 | 160 | 182 |
| Motor Power (KW) | 0.37 | 0.55 | 0.55 | 1.1 | 1.1 |
| Dimension(cm) | 115×80×100 | 135×90×107 | 145×100×115 | 165×120×136 | 176×130×146 |
| Weight(kg) | 180 | 200 | 220 | 290 | 320 |
