Electric Heating Jacketed Cooking Equipment

Customization:	Available
Type:	Cooking and Mixing
Voltage:	380V

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

DG-200

Customized

Cooking Kettle Capacity

50liter to 600L Customized

Cooking Pot Structure

Double Layer Made of Stainless Steel

Agitator

with / Without Agitator, Customized

Way of Discharge

Drainage From Bottom / Tiltable

Construction Material

Ss304 / Ss316

Transport Package

Wooden Case

Specification

CE

Origin

Wenzhou China

Product Description

Electric Heating Jacketed Cooking Equipment
1. Cooking milk, juice, tomato puree, paste
2. Kettle capacity 50L, 100L, 200L <customized>
3. Tiltable with mixing scraper or mixing paddle

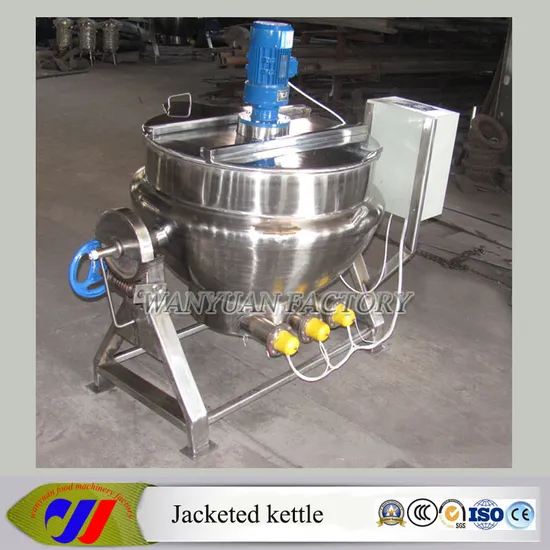

Jacketed kettle picture one:

Our extensive range of cookware products meet the complete needs of various cooking procedures. Further their superior construction and innovative designing also ensures longer and flawless service life. Our product range includes fix kettle with scraper, steam jacketed kettle and vacuum evaporated kettle.

Wenzhou wanyuan food machinery factory- - Jacketed kettle

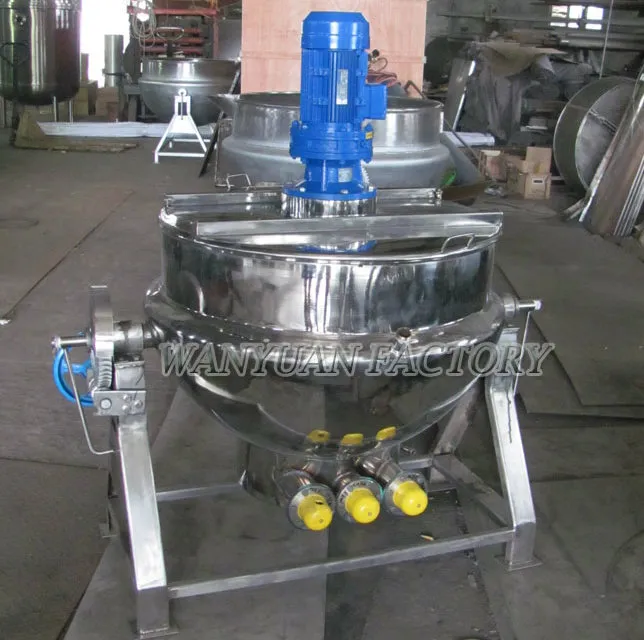

Electric Heating Jacketed Cooking Equipment
Here below is the specification of our 100L electric cooking kettle and 200L electric heating cooking kettle

Model		DG-200	DG-100
Jacketed pot	diameter(mm)	Φ800	Φ700
Jacketed pot	depth(mm)	550	500
Total capacity (L)		200	100
Material in/out pipe		1/2"	3/4"
Heating power(kw)		12	18
Boiling time (min)		~13	~10
Heating area(m2)		1.13	0.58
Design temperature (degree C)		180	180
Max working temp (degree C)		151	151
Design pressure (MPa)		0.095	0.095
Max working pressure(MPa)		0.095	0.095
Max tilting Angle		90°	90°
overall dimension	Length (mm)	1100	1000
	Width (mm)	850	750
	Height (mm)	1450	1100
