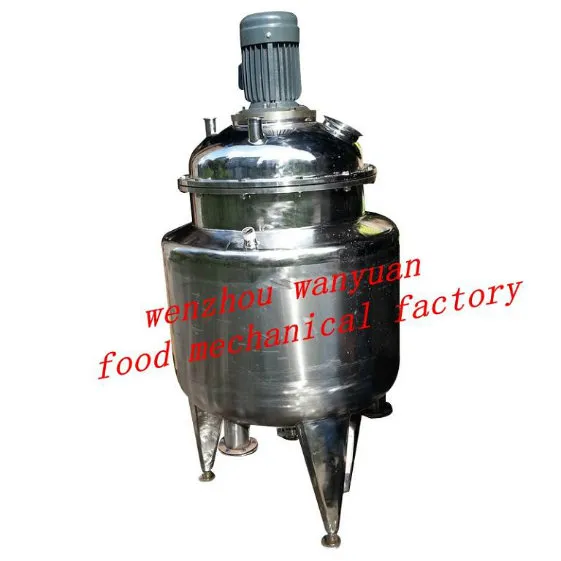

Mixing Tank with High Speed Stirrer Mixer

Customization:	Available
Additional Capabilities:	Milling
Application:	Liquid with Suspended Solids, Viscous Fluid, Liquid

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

LRG500

Condition

New

Mixing Drum Shape

Disc

Stirring Type

Spiral

Working

High Speed Mixer

Mixing Speed Option 1

Fixed Speed Such 36rpm 60rpm, 110rpm

Mixing Speed Option 2

8-140rpm

Mixing Seed Option 3

40-200rpm

Speed Option 4

200-1000rpm

Mixer Type

Agitator

Layout Type

Verticle

Operating type

Cycle Operating

Transport Package

Wooden Case

Specification

CE ISO

Origin

Wenzhou China

Product Description

Mixing Tank With High Speed Stirrer Mixer (LRG500)
1. Made of stainless steel
2. Mixing milk, juice, or any other viscous liquid
3. Customized mixing tank capacity

Mixing Tank With High Speed Stirrer Mixer (LRG500)
Mixing Tank <mixing tanks> mainly made of stainless steel, used for mixing different liquid together.
Also, you can use this mixing tanks to mix liquid and power to make a mixture.
Mixing tanks can be with different mixing speed. Such as 36rpm, 60rpm fixed mixing speed. But due to some production reqeust, you may need the mixing tanks with variable speed, such as 8 to 140rpm, 40 to 200rpm mixing speed, or 200 to 1000 rpm mixing speed. In special reqeust, we can use VFD<Variable Frequency Drive> to meet your special mixing speed request.

Mixing Tank With High Speed Stirrer Mixer (LRG500)
Wenzhou wanyuan food machinery factory mainly produce stainless steel mixing tanks for milk, juice, beverage, cosmetic, detergent as well as chemical product.

1.asepsis respirator
2.the thermometor
3.CIP CLEANER
4.seed inlet
5.adjustable triangle feet.
6.mixer
7.jackted layer (according to the custom request to choose miller board or hollow jacketed.
8.lamp glasses
9.sampling valve.
Our Mixing tank capacity can be 50L, 200L, 500L, 2000L or any other capacity you need.
Mixing Tank With High Speed Stirrer Mixer (LRG500)

volume (L)	Dimension (D× h ) (mm)	Total height (mm)	Diameter Of inlet & outlet	Heat preservation layer (mm)
500	840 × 1000	2250	38	60
600	920 × 1000	2300	38	60
700	990 × 1000	2300	38	60
800	950 × 1220	2500	38	60
900	1010 × 1220	2500	38	60
1000	1060 × 1220	2550	51	60
1500	1160 × 1500	2850	51	60
2000	1340 × 1500	2900	51	60
3000	1410 × 2000	3400	51	60
4000	1620 × 2000	3450	51	60
5000	1810 × 2000	3500	51	60
