Stainless Steel Electric Heating Jacketed Cooking Kettle Specifications:electric jacketed kettle 300L 400L electric jacketed cooking kettle with double jacket oil jacketed cooking kettle
electric heating Tilting jacketed kettle (steam kettle),Jacket kettle Electrical tilting jacketed kettle with scraper stirrer
Jacketed kettle or electric jacketed kettle can be designed into different type:
Tilting type cooking kettle and vertical type cooking kettle.
Tilting jacketed cooking kettlle is designed with a tiltable device, you can turn the kettle or pot over for discharge after cooking.
Vertical cooking kettle is designed on 3 legs, there is a discharge pipe at the bottom of the jacketed pot.
Both of tilting cooking kettle and verticle cooking kettle can be designed with mixer or without mixer.
Electrical jacket kettle:
Our electrical jacket kettle takes heat conducting oil as thermal source. Compare with steam heating, the heating temperature of of the electrical jacket kettle is higher than steam jacket kettle, which can shorten the cooking time. We also call electric heating kettle as oil jacketed kettle or oil jacketed cooking vat.
Our jacket kettle normally used for producing sauces, pasta, vegetables, soups, juice, meat, candy and other food products. It also can be used as simple sterilization boiler.
Electric heating jacketed cooking kettle with double jacket oil jacketed cooking kettle

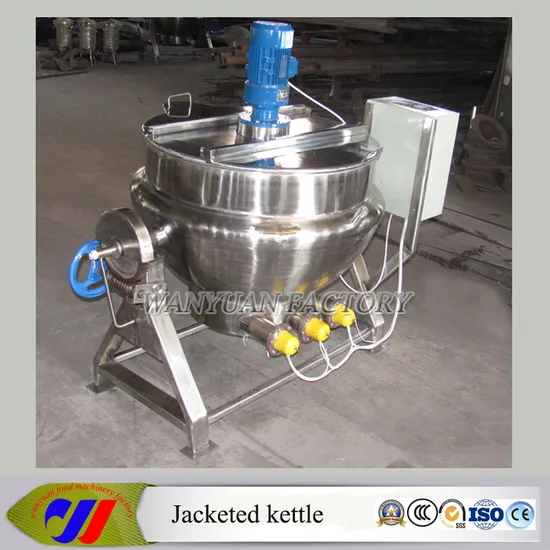

Tilting type:
Vertical type
buy jacketed kettle jacketed cooking kettler with mixing deice and cooking scrapers
Here below is the specification of our steam heating jacketed kettle
model |
DG -50 |
DG -100 |
DG -200 |
DG -300 |
DG -400 |
DG -500 |
DG -600 |
Jacketed pot |
diameter |
Φ600 |
Φ700 |
Φ800 |
Φ900 |
Φ1000 |
Φ1100 |
Φ1200 |
|
Depth mm |
450 |
500 |
550 |
600 |
650 |
700 |
750 |
Capacity (L) |
50 |
100 |
200 |
300 |
400 |
500 |
600 |
pipes |
stean |
3/4 " |
3/4 " |
3/4 " |
1 " |
1 " |
1 " |
1 " |
|
condensed water |
3/4 " |
3/4 " |
3/4 " |
3/4 " |
1 " |
1 " |
1 " |
Boiling time min |
~7 |
~10 |
~13 |
~16 |
~22 |
~26 |
~30 |
Heat ing area (m2) |
0.45 |
0.58 |
1.12 |
1.42 |
1.75 |
2 |
2.3 |
design temperature
(°C) |
180 |
180 |
180 |
180 |
180 |
180 |
180 |
Max operating temperature (°C) |
151 |
151 |
151 |
151 |
151 |
151 |
151 |
