Electrical Heating Food Industry Sugar Melting Tank & Dissolving Sugar Tank

Customization:	Available
Additional Capabilities:	Milling
Application:	Liquid with Suspended Solids, Viscous Fluid, Liquid

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

WY-150

Certification

CE, ISO

Condition

New

Mixing Drum Shape

Disc

Stirring Type

Spiral

Working

High Speed Mixer

Moed Capacity

150L

Heating Mothed

Electric Heating

Structure

Seal

Mixer

Impeller with Scraper

Mixer Type

Agitator

Layout Type

Verticle

Operating type

Cycle Operating

Transport Package

Wooden Case

Specification

SUS304

Trademark

Wanyuan

Origin

Wenzhou China

HS Code

8479819000

Production Capacity

5000

Product Description

Electrical Heating Food Industry Sugar Melting Tank & Dissolving Sugar Tank

Purposes:
A. Sugar melting tank also named invert sugar tank, widely apply to food, beverage, dairy products, Chemical etc industry.

B. Sugar melting tank are mainly suitable for dissolving white granulated sugar, also use to melt milk powder, starch etc powder or granular materials. It also play some functions as stirring, dissolving, heating( or cooling, use tap-water cooling), filtrating( strainer) and others. Fast melting speed, high efficiency, is the one of technology equipment for food, drink productions.

C. Sugar melting tank prepared for series of advantages like convenient to operate, corrosion resistance, powerful production ability, easy to clean and maintenance. External tank body is the stainless steel which was polished and processed to more bright and smooth of the surface of tank.

Working Principle:
Sugar melting tank primarily put dissolved materials and cool water(or hot-water) in tank, and then steam inlet inter-layer to reach the effects through heated dissolving.

Details Information

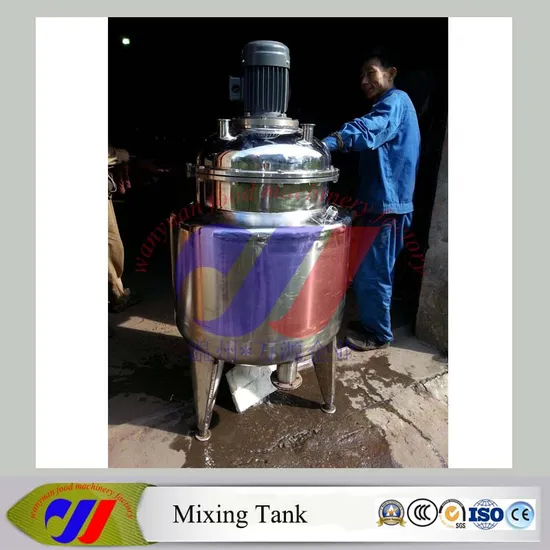

Sugar Melting tank
Capacity: CXSU-250L
Materials: Sus304
Layers: Triple-layer
Cover: Remove cover, without vacuum
Stirring mode: Scrapper stirring, motor power 1.5kw
Stirring tools: Stirring paddle
Stirring rotating speed: 0-60R/min, frequency control
Heating mode: Electrical heating
Heating temperature: About 60 celsuis will be dissolved
Discharge mode: Bottom discharge

Wenzhou Longwan wanyuan food machinery factory mainly produce stainless steel mixing tanks for milk, juice, beverage, cosmetic, detergent as well as chemical product.

Our Mixing tank capacity can be 50L, 200L, 500L, 2000L or any other capacity you need.
The below is Mixing tank specifications:

volume (L)	Dimension (D× h ) (mm)	Total height (mm)	Diameter Of inlet & outlet	Heat preservation layer (mm)
500	840 × 1000	2250	38	60
600	920 × 1000	2300	38	60
700	990 × 1000	2300	38	60
800	950 × 1220	2500	38	60
900	1010 × 1220	2500	38	60
1000	1060 × 1220	2550	51	60
1500	1160 × 1500	2850	51	60
2000	1340 × 1500	2900	51	60
3000	1410 × 2000	3400	51	60
4000	1620 × 2000	3450	51	60
5000	1810 × 2000	3500	51	60
