Cooling Tank Ageing Tank for Ice Cream Mix

Customization:	Available
Additional Capabilities:	Milling
Application:	Liquid with Suspended Solids, Viscous Fluid, Liquid

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

LRG-1000

Certification

CE

Condition

New

Mixing Drum Shape

Disc

Stirring Type

Spiral

Working

Low Speed Mixier

Product Name

Ageing Tank

Capacity

1000L

Material

SUS304 or SUS316

Function

Heating, Cooling, Mixing

Mixing Speed

36rpm

Mixing Power

2.2kw

Mixer Type

Agitator

Layout Type

Verticle

Operating type

Cycle Operating

Transport Package

Wooden Case

Specification

SS304/SS316

Trademark

Wanyuan

Origin

Wenzhou, China

HS Code

8479819000

Production Capacity

5000

Product Description

Cooling Tank Ageing tank for ice cream mix
Ageing tank <cooling and heating tank>is a king of process tank which is made of stainless steel. ageing tank < cooling and heating tank > can be designed with different capacity, such as 500L ageing tank < cooling and heating tank > , 1000L ageing tank < cooling and heating tank > or any other capacity , big or small.
Cooling Tank Ageing Tank for Ice Cream Mix

Ageing Tank < cooling and heating tank > Usage
most ageing tanks < cooling and heating tank > are used in food processing industrial. we can see ageing tanks in a milk production factory, also, we can see ageing tanks < cooling and heating tank > in juice productiong workshop.

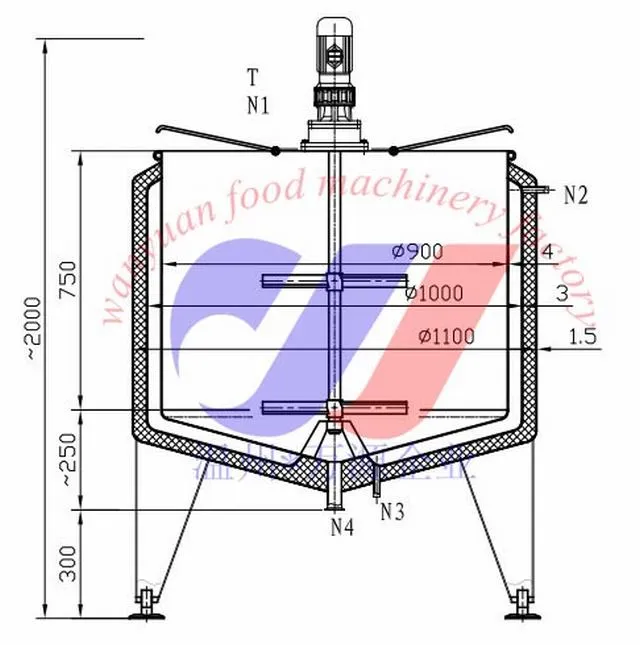

Ageing tank structure < cooling and heating tank >
ageing tank < cooling and heating tank > is designed with 3 layer, or we can call it as a tri-layer mixing tank or 3 layer ageing tank < cooling and heating tank > .
inner layre of our ageing tank < cooling and heating tank > is made of stainless steel. usually AISI304
the middle layer of the ageing tank < cooling and heating tank > is a jacket, it can be dimple jacket or spiral tube or coil. you can access hot water or steam to the jacket for heating. also you can access cooling water to the jacket for cooling. that is why we call aging tank as cooling and heating tanks.
outside the ageing tank < cooling and heating tank > body, there is a layer of heat preservation.

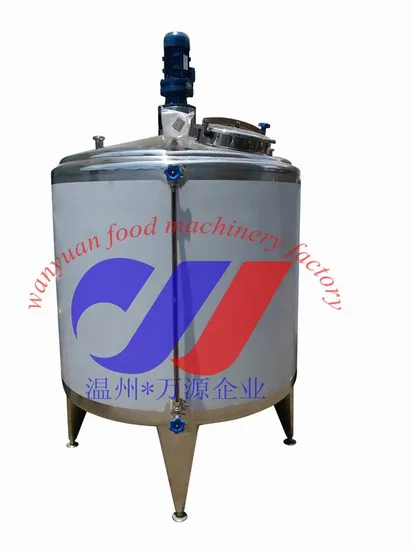

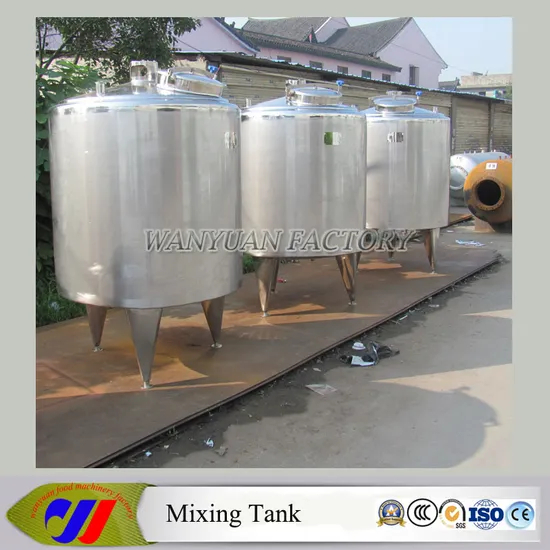

ageing tank < cooling and heating tank > picture

Ageing tank < cooling and heating tank > specification

Capacity	500 L	1000L	2000 L
Working Pressure	0.09 MPa	0.09 MPa	0.09 MPa
Test Pressure	0.15 MPa	0.15 MPa	0.15 MPa
Stirring Speed	36 r/min	36 r/min	36 r/min
Heating Area	2 m²	4.5	7.5 m²
Material in/outlet	DN40	40	DN40
Heating Power	14 KW	12	14 KW
Overall Dimension	Φ1350×1900	Φ1600×2200	Φ1900×2500
Weight	720KG	>980	1100
