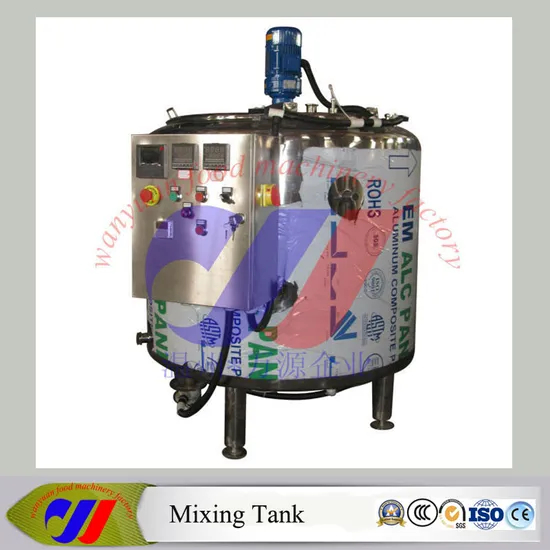

Milk, Juice Electric Heating Batch Pasteurizer

Customization:	Available
Process:	Thermal Processing
Power Source:	Electric

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

WY-500

Automatic Grade

Automatic

Application

Milk, Yogurt, Milk Powder, Cheese

Customized

Capacity

200L-10t

Material

Stainless Steel 304 / 316

Heat Exchanging Area (M2)

12

Warm-Keping Time (S)

25

Sterilizing Temperature (Centigrades)

85-95

Controlling Methods

Half/Complete Automatically

Transport Package

Wooden Case

Origin

Wenzhou China

Product Description

Milk, Juice Electric Heating Batch Pasteurizer
1. Made of stainless steel 304-316
2. Capcity: 200-10T, can accroding to your requirement to produce
3. Applied to the milk, yogurt, milk power, cheese, juice, etc...

Offer 300L pasteurizer for milk, cheese and other dairy product. Pasteurizer temperature can be controled from 65 degree C to 95degree. As a manufacture, wenzhou longwan wanyuan food machinery factory can offer you not only 300L pasteurizer, we can also produce 500L batch pasteurizer for you fruit paste, tomato puree production.

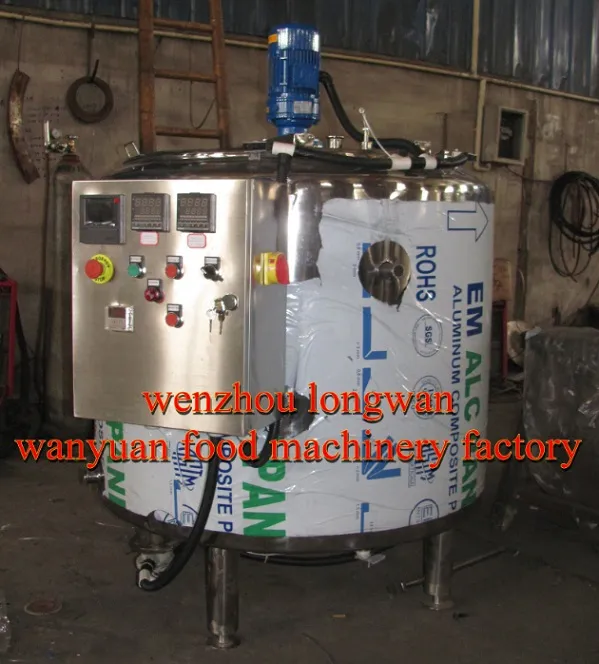

Milk, Juice Electric Heating Batch Pasteurizer

Wenzhou wanyuan food machinery factory- - Batch Pasteurizer

The below is batch pasteurizer specifications:

cooling and heating tank with scraper agitator or with paddle mixer

Effective Volumn(L)	Dimension of Tank(mm*mm)	Total Height (mm)	Diamension of inlet&outlet (mm)	Heat preservation layer(mm)
500	840*1000	2250	38	60
600	920*1000	2300	38	60
700	990*1000	2300	38	60
800	950*1220	2500	38	60
900	1010*1220	2500	38	60
1000	1060*1220	2550	51	60
1500	1160*1500	2850	51	60
2000	1340*1500	2900	51	60
3000	1410*2000	3400	51	60
4000	1620*2000	3450	51	60
5000	1810*2000	3500	51	60
6000	1980*2000	3550	51	60
7000	1930*2440	4000	51	60
