100L Open Type Stainless Steel Hot and Cold Cylinder

Customization:	Available
Process:	Thermal Processing
Power Source:	Electric

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

WY-100

Automatic Grade

Semi-Automatic

Application

Milk, Yogurt, Milk Powder, Cheese

Customized

Tank Material

Stainless Steel 304 / 316

Tank Structure

Tri-Wall / 3 Layer

Isolation Material

Poly Urethane Foma / Rock Wool

Way of Discharge

Drainage From Side / Bottom

Tank Top

with Hinged Lid / Manhoe

Min. Tank Capacity

100L

Max. Tank Capacity

5000L <Customized>

Heating Mode

Electric Heating/ Steam Heating

Transport Package

Wooden Case

Origin

Wenzhou China

Product Description

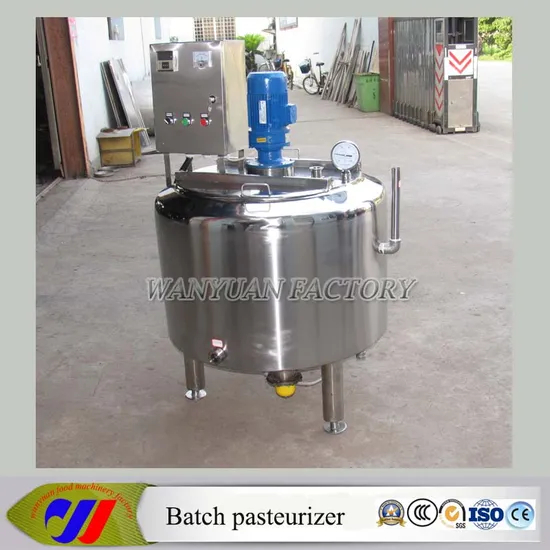

100L Open Type Stainless Steel Hot and Cold Cylinder/ Batch pasteurizer
1. Cooling, heating, mixing and heat preservation
2. Mixing speed can be fixed or variable or VFD
3. Conical bottom or slope bottom

Hot and cold cylinder description
Hot and cold cylinder is a kind of stainless steel mixing tank with function of heating, cooling and mixing, as well as heat preservation. We also call it hot and cold urn, or you can call it stainless steel mixing tanks or batch pasteurizer.

How does this Hot and cold cylinder work
Hot and cold cylinders usually heated by steam, electric heating or hot water. There is a jacket between the inne layer and out layer of the cooling and heating tank. This jacket can be dimple jacket or gap jacket. Hot water runs in the Hot and cold cylinders jacket from bottom, and being drainaged out from the top of the jacket. The mixer for the cooling and heating tank is used to accelerate cooling and heating speed.

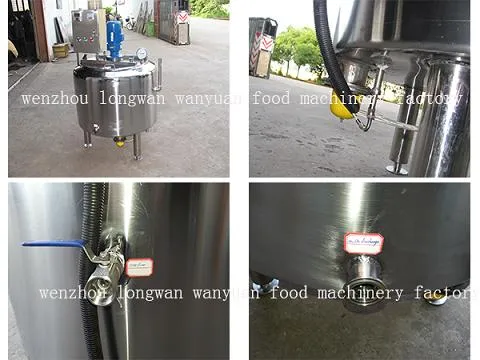

Hot and cold cylinder pictures
100L Open Type Stainless Steel Hot and Cold Cylinder

Configuration of Hot and cold cylinder
1 Quick open manhole
2 Various styles of CIP cleaners
3 Fly and insert resistant sanitary breathing cover.
4 Adjustable triangular bracket
5 Dismountable materials input pipe assembly
6 Thermometer
7 Ladder
8 Jacket
9 Liquid level meter and level controller
10 Eddy-proof board
It can be customized according to special requirements of customer.

Wenzhou wanyuan food machinery factory— — Hot and cold cylinder

Here below is the specification of cooling and heating tank:

cooling and heating tank with scraper agitator or with paddle mixer

Effective Volumn(L)	Dimension of Tank(mm*mm)	Total Height (mm)	Diamension of inlet&outlet (mm)	Heat preservation layer(mm)
500	840*1000	2250	38	60
600	920*1000	2300	38	60
700	990*1000	2300	38	60
800	950*1220	2500	38	60
900	1010*1220	2500	38	60
1000	1060*1220	2550	51	60
1500	1160*1500	2850	51	60
2000	1340*1500	2900	51	60
3000	1410*2000	3400	51	60
4000	1620*2000	3450	51	60
5000	1810*2000	3500	51	60
6000	1980*2000	3550	51	60
7000	1930*2440	4000	51	60
