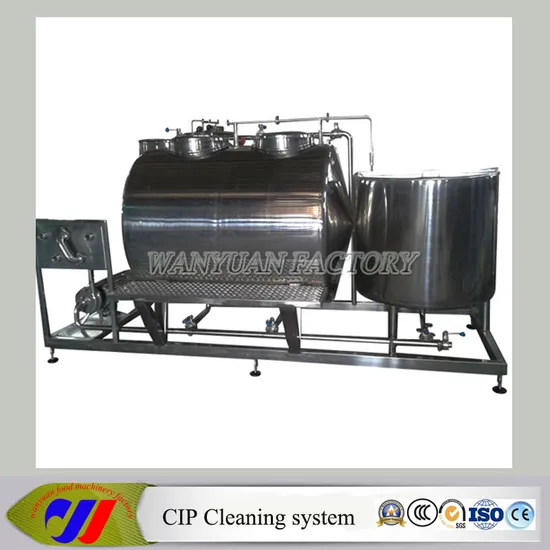

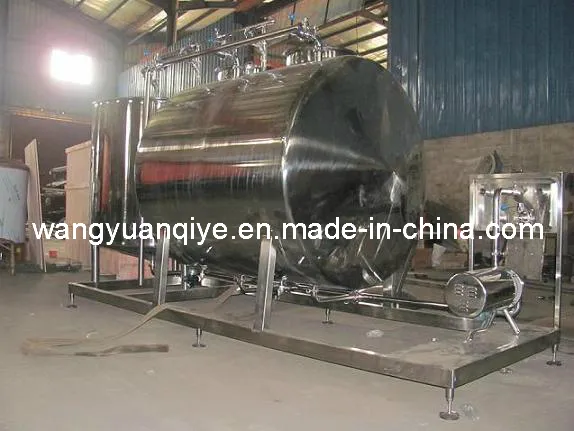

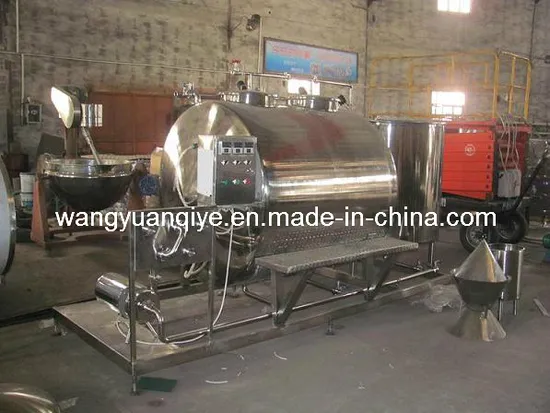

Pipe CIP cleaning machine / CIP station
Automatic Cip Cleaning in Place System is used to clean at site of material pipe of the industries like milk products, juice, beverage and etc.
A centrifugal pump is used in CIP to convey cleaning liquid into material pipe and equipment recipients to force the cleaning liquid to circulate to make cleaning without taking apart pipes or equipment. By this, capacity utilization rate of the machine can be improved and, at the same time, lessen intensity of labor.
Wenzhou wanyuan food machinery factory
The below is CIP cleaning machine specification:
| Working Pressure | Inside tank: Normal Pressure, Inside Steam Pipe: 0.3-0.7Mpa |
| Working Temperature | Inside acid tank, alkaline tank, water pipe, steam pipe: 60-138ºC |
| Product Name | 2% Acid and Alkaline Liquid, 2% Nitric Acid, Caustic Soda Liquid, Steam. |
| Centrifugal Pump Flux | 10T/h |
| Max. Centrifugal Head | 35m |
| Motor Power | 2.2kw |
| Dimension(L*W*H) | 3200*1600*2000mm |
| Weight | 980kg |
