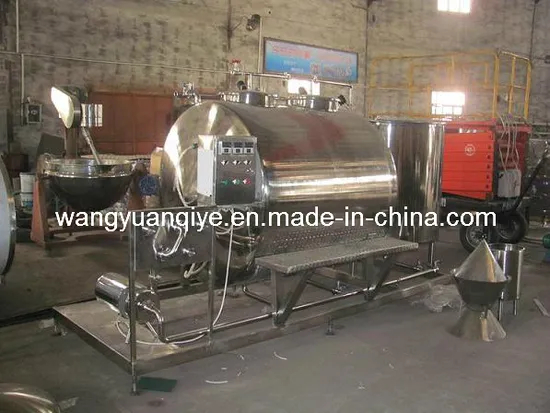

Full-Automatic CIP Cleaning Machine
CIP Cleaning system is made of high-quality SUS304 or high-precision surface polishing. Can be customized
CIP system/ CIP Cleaning system /CIP
Control: Manual/ semi-automatic / fully automatic
Cubage: Every cell in the cleaning pot have capacity of 1000L-5000L and it is different according to the total cleaning quantity.
Material: 316L/304 stainless steel or 304 stainless steel
Configure: Clean water pot, alkali liquid pot, acid liquid pot, thick acid and alkali transportation system, calefaction equipment, transportation pump, control system.
Wenzhou wanyuan food machinery factory
The below is CIP cleaning machine specification:
| Working Pressure | Inside tank: Normal Pressure, Inside Steam Pipe: 0.3-0.7Mpa |
| Working Temperature | Inside acid tank, alkaline tank, water pipe, steam pipe: 60-138ºC |
| Product Name | 2% Acid and Alkaline Liquid, 2% Nitric Acid, Caustic Soda Liquid, Steam. |
| Centrifugal Pump Flux | 10T/h |
| Max. Centrifugal Head | 35m |
| Motor Power | 2.2kw |
| Dimension(L*W*H) | 3200*1600*2000mm |
| Weight | 980kg |
