Sanitary Positive Displacement Rotor Pump

Customization:	Available
Application:	Milk, Cheese, Food, Dairy, Water
Model Number:	Ss304

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

ZB3A-8

Proper Medium Temperature

20~150 Degree Centigrade

Diameter

25X1.5

Connection Type

Clamp, Thread, Flange

Transport Package

Wooden Case

Specification

SUS304

Trademark

Wanyuan

Origin

Wenzhou China

HS Code

8479819000

Production Capacity

5000

Product Description

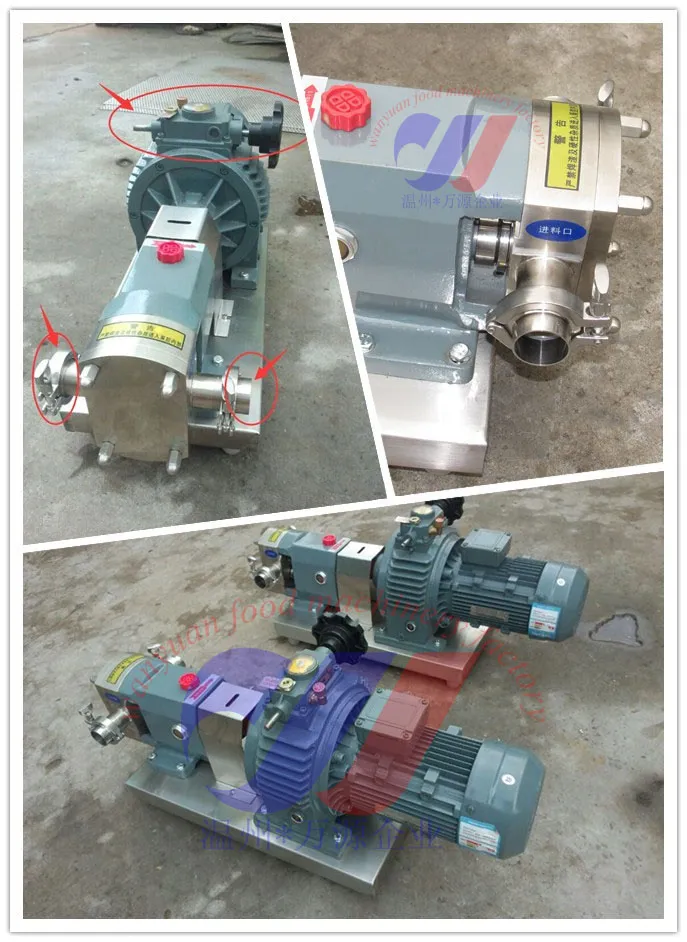

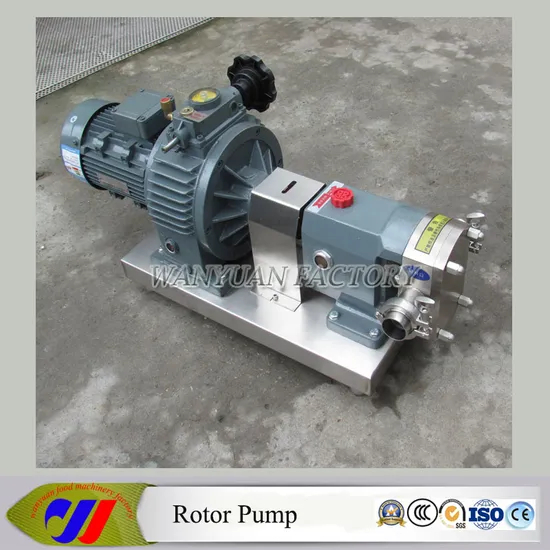

Sanitary Positive Displacement Rotor Pump
Applications: Food industry, Daily chemical industry, The pharmaceutical industry, Chemical industry., etc.

The whole body uses the stainless steel materials, equipping with common or anti-explosion electric motor. It's suitable for conveying liquid materials in various places and makes sure the production procedure in accordance with GMP quality standard.

Rotor pump is also named rotary lobe pump, three lobe pump, sole pump etc. When the two simultaneous reverse rotating rotors (with 2-4 gears) revolve, it produces suction force at the inlet (vacuum), which intakes the material delivered. The 2 rotors divide the rotor housing into many smaller parts and revolve in the sequence of A--B--C--D. When it revolves to position A, only housing I is filled with medium. When it revolves to position B, housing B encloses part of the medium; When it goes to position chousing A encloses medium, and finally it goes to position D, then housing A, B and II are interlinked and the medium is transported to the outlet. As this process is repeated, medium material is transported continuously.

Main application characteristics:
1)High viscosity material feeding pump
2)Thin medium feeding pump
3)Sanitary feeding pump
4)Heat preservation sleeve design
5)Water cleaning mechanical seal
6)Almost have no consumable parts.
