Stainless Steel Pudding Rotor Pump Tomato Sauce Rotary Lobe Pump

Customization:	Available
Process:	Pump
Power Source:	Electric

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

ZB3A-8

Automatic Grade

Manual

Application

Milk, Cheese, Food, Dairy, Water

Customized

Model Number

Ss304

Power

Electric

Proper Medium Temperature

20~150 Degree Centigrade

Transport Package

Wooden Case

Origin

Wenzhou China

Product Description

Stainless Steel Pudding rotor pump tomato sauce Rotary Lobe Pump
This type pump's driving system adopts step-less variator +motor. The speed regulator changes the speed by manual adjustment, which is safe, reliable and infinitive flow adjustment. But the non-automatic adjustment is also troublesome. Speed regulating should be done in operation not in shutoff state.

The rotor pump is widely used to deliver: Various special material, stiff material, mixture with different specific gravity, corrosive material and material with large power.

The pump is applied in food, daily chemicals, pharmacy, chemical industry.

Rotor pump Advantage:
1. Stable work
2. Low noise
3. Easy assembly and disassembly
4. Conveniently clean

Rotor pump Usage:
1. Dairy product: Sour and fresh milk, ice cream, cream slices and whey
Beverage: Beer, mash, yeast, aerated water, concentrated fruit solution and fruit juice drinks
2. Food: Ketchup, fruit paste, vegetable pulp, pudding, jam, jelly, seasonings, fruit filling, sweetener, yeast paste, salad seasonings, cakes, meat pulp, minced meat, veil fat and edible oil
3. Candy: Syrup, thin cream filling and chocolate
4. Cosmetic: Face cream, lotion, hair dye and essential oil
5. Medicine: Pill paste, extract, emulsifying agent and ointment
6. Chemical: Fat, solvent, resin, polymer and dyestuff
Infinitely adjustable-speed type rotor pump

Ss304 Rotary Lobe Pump for Chocolate, Honey, Ice Cream, Cosmetic
Wenzhou longwan wanyuan food machinery factory

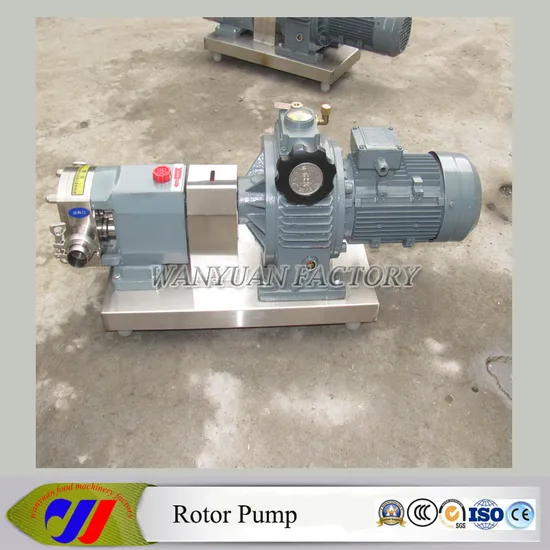

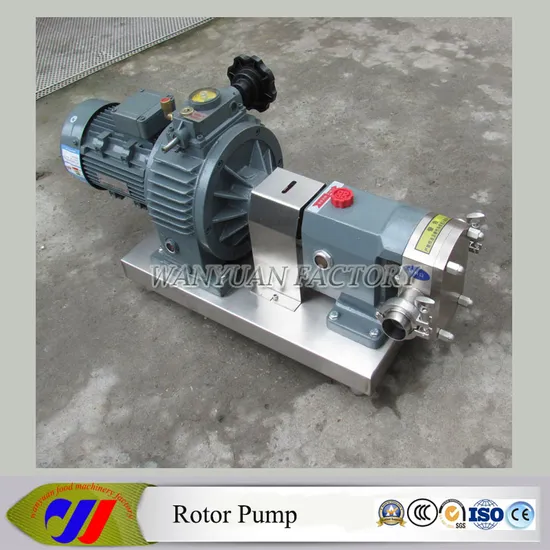

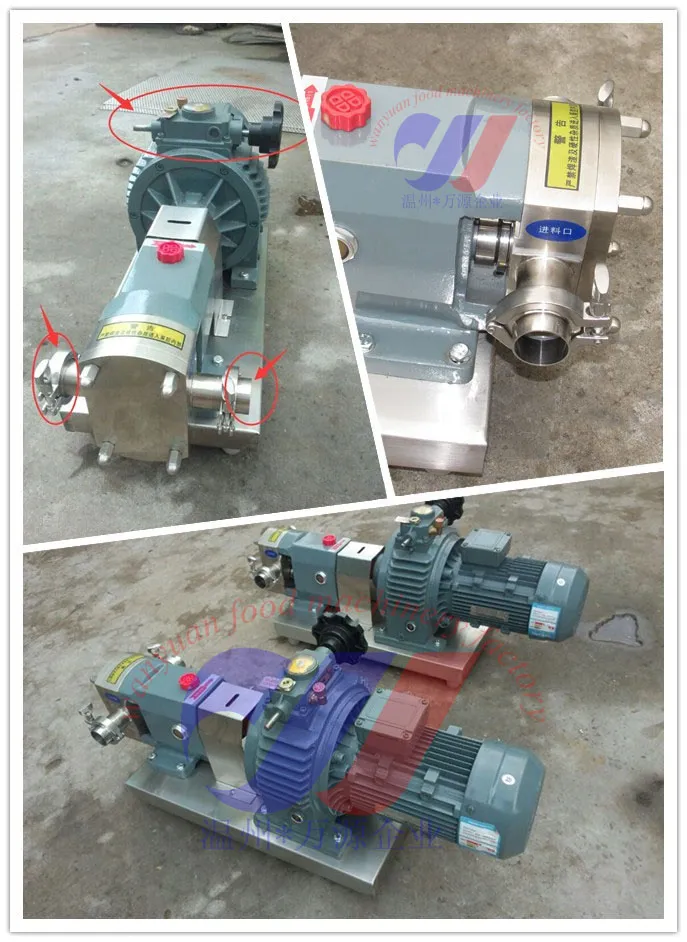

Rotor pump Picture:
Stainless Steel Pudding Rotor Pump Tomato Sauce Rotary Lobe Pump

The below is our pump specification:

Model	Discharged Capacity liter per 100 revolution	RPM	Discharged Capacity (m3/h)	Power (kw)	Pump Discharged Pressure(bar)
Model	Discharged Capacity liter per 100 revolution	RPM	Discharged Capacity (m3/h)	Power (kw)	Pump Discharged Pressure(bar)
ZB3A-3	3	200-500	0.3-0.8	0.75	The maximum pressure is 3 bar when water is test standard. The greater viscosity, the larger pressure. The maximum can reach 8 bars.
ZB3A-6	6	200-500	0.65-1.6	1.5
ZB3A -8	8	200-500	0.85-21.6	1.5
ZB3A -12	12	200-500	1.3-3.2	2.2
ZB3A -20	20	200-400	2.1-5.4	3
ZB3A -30	30	200-400	3.2-6.4	4
ZB3A 36	36	200-400	3.8-7.6	5.5
ZB3A -52	52	200-400	5.6-11	5.5
ZB3A -66	66	200-400	7.1-14	7.5
ZB3A -78	78	200-400	9-18	7.5
ZB3A -100	100	200-400	11-22	11
ZB3A -135	135	200-400	15-30	15
ZB3A -160	160	200-400	17-34	18.5
ZB3A A-200	200	200-400	21.6-43	22
