| Customization: | Available |
|---|---|
| After-sales Service: | Warranty 1 Year |
| Warranty: | 1 Year |
| Quantity: | |
|---|---|

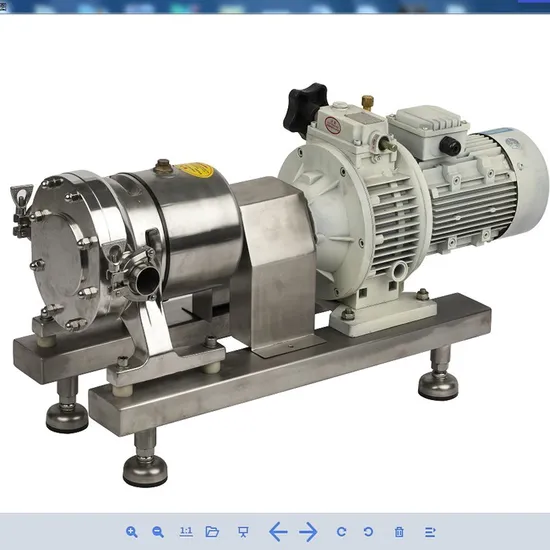

The thick slurry pump is made of high-quality stainless steel and features a tube lining rubber that is non-toxic and tasteless. It can withstand working temperatures of up to 100°C.
The thick slurry pump is designed for transporting food slurry, high viscosity, or corrosive mediums. It is widely used in the food, metallurgy, chemical, and other industrial sectors.
Correct collection of data is important for achieving the best results. To meet the specific properties and operating demands of your medium, we recommend the following:
For more information, please contact Wenzhou Longwan Wanyuan Food Machinery Factory.
| Model | capacity (t/h) | head (m) | Suction head (m) | Inlet /outlet diameter (mm) | speed (r/min) | motor (Kw) | pressure (kg/cm2) |
| I-1B1 | 1.5 | 50 | 2 | 25 | 960 | 1.1 | 5 |
| I-1B1.5 | 3.2 | 80 | 3 | 40 | 960 | 2.2 | 8 |
| I-1B2 | 5.6 | 80 | 3 | 50 | 960 | 3 | 8 |
| I-1B2.5 | 6.5 | 60 | 3 | 60 | 960 | 3 | 6 |
| I-1B3 | 12 | 60 | 3 | 75 | 960 | 5.5 | 6 |
| I-1B4 | 16 | 60 | 3 | 100 | 960 | 7.5 | 6 |
| I-1B5 | 25 | 60 | 3 | 125 | 960 | 11 | 6 |
| I-1B6 | 30 | 60 | 3 | 150 | 960 | 15 | 6 |
