Stainless Steel Saniatry Duplex Strainer

Customization:	Available
Application:	Beverage
Customized:	Customized

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

DS-2

Power Source

Electric

Automatic Grade

Manual

Usage

Liquid Filter

Filtration Grade

Medium Filter

Type

Mesh Filter Bag

Sanitary

Stainless Steel

Transport Package

Wooden Case

Specification

SS304/SS316

Trademark

Wanyuan

Origin

Wenzhou China

HS Code

8479819000

Production Capacity

5000

Product Description

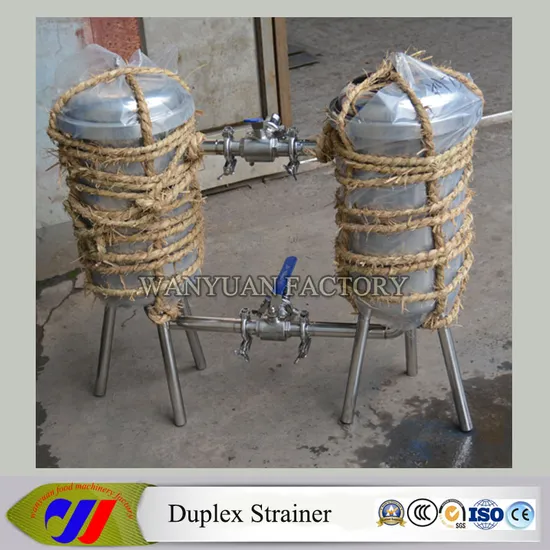

Stainless Steel Saniatry Duplex Strainer

Stainless Steel Duplex Filter/Duplex Strainer/Duplex Leach/Duplex Percolator

This equipment are all made of stainless steel, are two cylinder, is a single layer stainless steel welded structure, internal and external surface polishing, capped with a bleed valve, in order to work deflated. Pipe is made of bilge close connection, after 0.3 Mpa hydrostatic test, three male cock opening and closing flexible, the equipment compact structure, convenient operation, simple maintenance.
Double filter, also known as parallel switching filter, using the two three-way ball valve, the two monocular filter assembly on a stand, don't have to stop when cleaning filter, ensure the continuous work, is a no parking line filter, filtering element of this filter, in addition to the stainless steel filter, may also have quality honeycomb degrease cotton fiber, can filter out particles of the particle size of more than 1 mu, this filter is use monocular, at this time only need to remove the stand together, the rest of the size remains the same.
Double filter inside and outside surface polishing treatment, filter cylinder is equipped with stainless steel mesh and mesh support basket; Capped with a bleed valve, discharge air in the filter for filtering effect. Cover connected to the filter cartridge adopts quick open structure, more convenient cleaning (change) mesh, three adjustable leg can make smooth filter is placed on the ground. Pipe connection with articulated or clamp connection mode, front-rear using three-way ball valve opening and closing valve, pressure and temperature resistant, convenient operation and no material liquid leakage more health.

1. Material: AISI304, AISI316L

2. Standard: DIN/SMS/ISO/3A/IDF

3. Connect End: Clamp end, welding end

4. Flux domination of pipeline: DN25-100MM and 1" - 4"

The filters are used wherever continuous operation is needed and flow can't be interrupted. Duplex filter consists of two filtration chambers each rated for 100% capacity. There redirection of fluid flow without interruption of flow with manual changeover valve. No tools are needed for removal of basket for cleaning.

We also can produce the whole line according to customer requirements once customer request. Welcome!

Stainless Steel Duplex Filter/Douplex Strainer/Douplex Leach/Douplex Percolator
