1, Usage:

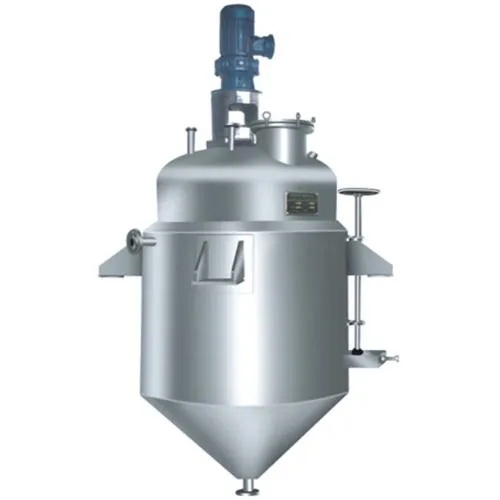

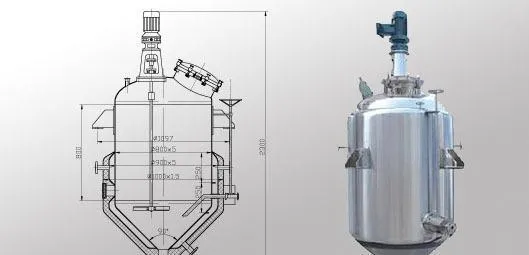

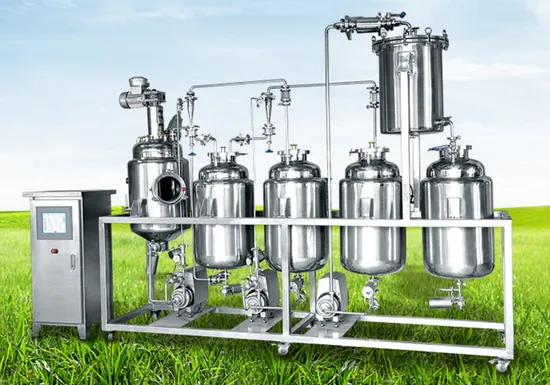

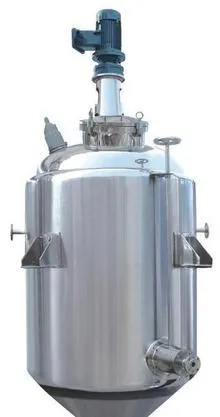

This machine is used widely in the herb medicine purify field and which including the alcohol deposition tank ,pump, swirling flow devices ,micro-filter,cold sedimtion tank, final products tank.
Characteristic:
1) Save the sedimention time,it can separate the solid /solvent fast after the sediment under hydrocyclone process,the time can reach to 3-5 hours instead of 12-24hours
2) The depostion solution after the hydrocyclone separate ,the solid content can reduce compare with the traditional depostion process,the supermatant liquid can filter by micro-pore filter
3) The final solution is purify ,it can keep clear after long time static keep
4) The solid can easy to discharge for the pipeline 5 This unit is developed on the traditional alcohol deposition process ,the equipment and the opearion process is the fisrt development in china
2, Test result:
Raw material :Capillary Wormwood Herb, Honeysuckle Flower, Salvia miltiorrhiza Bunge
| Test Material | Capillary Wormwood Herb,
Honeysuckle Flower,
Salvia miltiorrhiza Bunge | Test date | 2010.04-08 |
| |
| Symbol | Mean | unit | Data |
| ρ | Density | kg/m3 | 875-892 |
| µ | Viscosity | mpas-1 | 1.163-1.209 |
| Qm | Capacity | m3/h | 3.08-3.2 |
| d1 | Maximum solid size in the first effect supernatant liquid | µm | 6.56-8.84 |
| c1 | Solid content in the first effect supernatant liquid | % | 7.8-12 |
| d2 | Maximum solid size in the second effect supernatant liquid | µm | 1.74-2.84 |
| c2 | Solid content in the second effect supernatant liquid | % | 6.6-7.5 |
