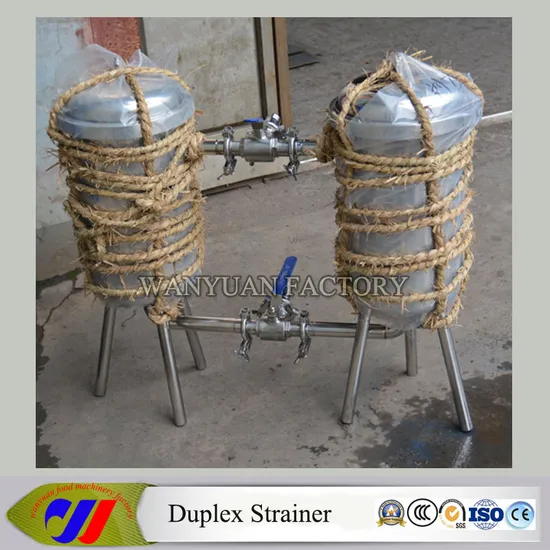

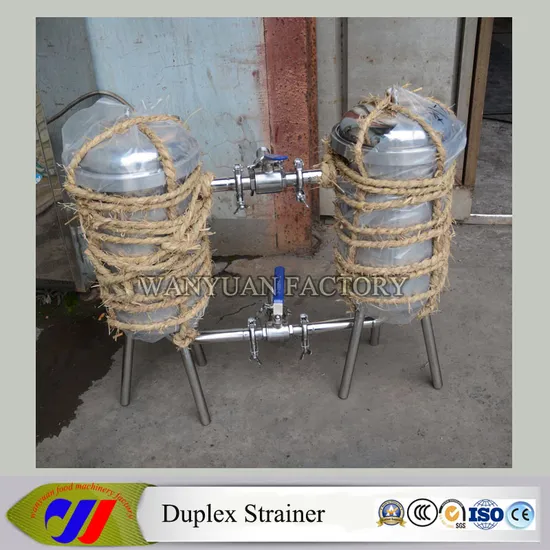

Stainless Steel Duplex Filter/Douplex Strainer/Douplex Leach/Douplex Percolator
Specification of Sanitory double X filter(Series Bag Filter, cavity duplex filter, washable bag filters ):
ASTM SS304 or SS316 stainless steel iron construction for best chemical compatibility and corrosion resistance.
- Two styles of surface finish (both inside and outside): Electro-Polish or Bead blasted
- Patent design to prevent bypass leakage.
- Multi choice of seal material to meet different needs: Silicon rubber, EPDM rubber, Viton rubber;
- For filter bag size 02 (7" dia X 32" long)
- 150 PSI (1.0Mpa) pressure available
- Standardised flanges and threads: DIN, BSP, ANSI
- Custom designs available.
Accessories included: Air release valve, pressure gauge and two 5 micron bag filters
Packaging: Wooden case
| Duplex Filter specifications: | | |
| | 0.15m2 | 0.25m2 | 0.35m2 |
| Flux | 3t/h | 5t/h | 10t/h |
| exterior | 1050*420*1087 | 1300*500*1100 | 1520*550*1200 |
