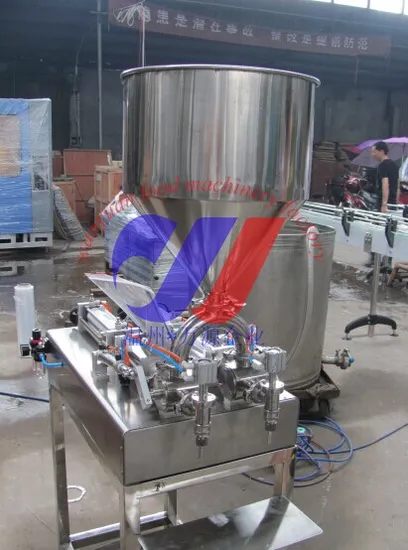

Semi-automatic Ointment Filling Machine
We can produce 100ml, 200ml, 500ml, 1000ml etc. Capacity filling machine, and also can according to the customer requirements to produce.
Principle:
Ointment and liquid double purpose filler is used in the quantitative filling of water, oil, emulsion and ointment. It uses the piston pump to fill and regulates the filling scope by the cylinder stroke.
The feed methods have two kinds self-suction and hoper type. The self-suction directly sucks from the container and the hoper type puts the materials into the hopper to fill.
This machine has convenient and swift measurement, good shape and compact structure. The places contacting with the materials are made of high-quality stainless steel (usually using 304, the Medical 316L).
The machines unique valve structure realizes the double purposes of ointment and liquid, which is the ideal and economical equipment for medicine, daily chemical products and fine chemical industry.
Features:
This machine adopts full pneumatic control and owns a wide application scope, simple measuring regulation, good shape and convenient cleaning, suitable for the explosion-proof unit.
Wenzhou wanyuan food machinery factory- - Filling machine
The below is filling machin specifications:
| Power supply | 220/110V 50/60Hz |
| Air pressure | 0.4-0.6MPa |
| Filling speed | 5-20 Bottles/min. |
| Filling accuracy | ≤±1% |
| Filling range | 25-60ml 50-125ml 100-250ml 200-500ml 400-1000ml 900-2500ml 2200-5000ml |
