Specifications
1. Vacuum contracting flow;
2. Small investment and big profit;
3. Stainless steel;
4. Advanced technology;
5. High efficient

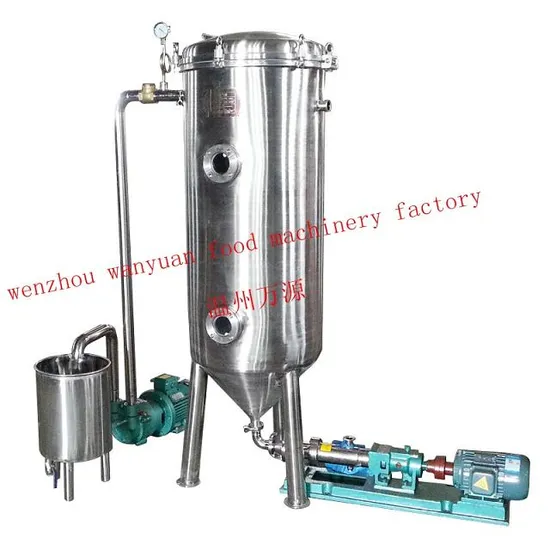

Features of Single Purpose External Cycling Vacuum Concentration Equipments:
1, Alcohol recycling:
Big recycling capacity with vacuum contracting flow, 5-10 times of productivity than the old types, 30% of energy cost, small investment and big profit.
2, Contracting material:
Combination of external heating cycling and vacuum vaporizing, quick vaporizing speed, contracting rate 1: 3; In the complete sealing, there is no foaming and the contracted medicine is not polluted and of strong medicine flavor. And it is easy to clean (cleaning can be done after opening the upper and lower lids). The machine is of easy operation, covers small area. The heater, vaporizer adopts the stainless steel heat keeping structure. The shell is stainless steel, and the surface is mirror processed and matted.
Main technical parameters
| Parameters | WZ-500 | WZ-1000 | WZ-1500 | WZ-2000 |
Evaporation capacity
(/h) | 500 | 1000 | 1500 | 2000 |
Steam pressure
(Mpa) | <0.25 |
Degree
of vacuum
(Mpa) | -0.8 |
| Concentration ratio | 1.2-1.3 |
size
length×width×height(m) | 2×1×3 | 2.2×1.2×3.3 | 2.5×1.3×3.5 |
