Juice / Milk Homogenizer

Customization:	Available
Power Source:	Electric
Certification:	CE, ISO9001

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

GJB2500-25

Application

Milk

Customized

Model No.

Gjb2000-25

Mixer Type

Homogenizer

Working

Diffusion Mixer

Capacity

2000L/H

Max Working Pressure

20mpa

Power

15kw

Voltage

380V, 50Hz, 3 Phase

Material

Stainless Steel 304

Transport Package

Wooden Case

Origin

Wenzhou China

Product Description

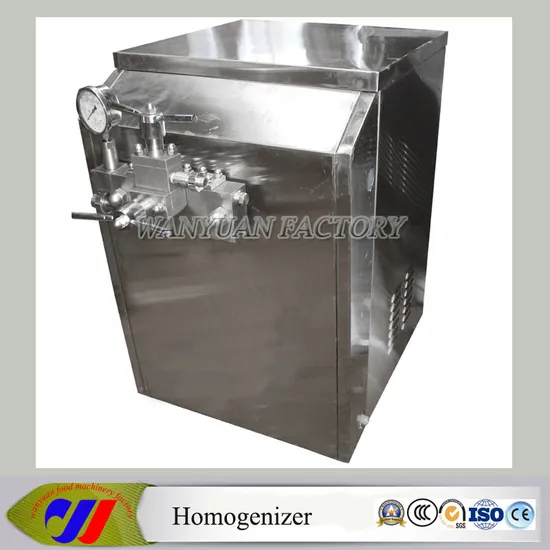

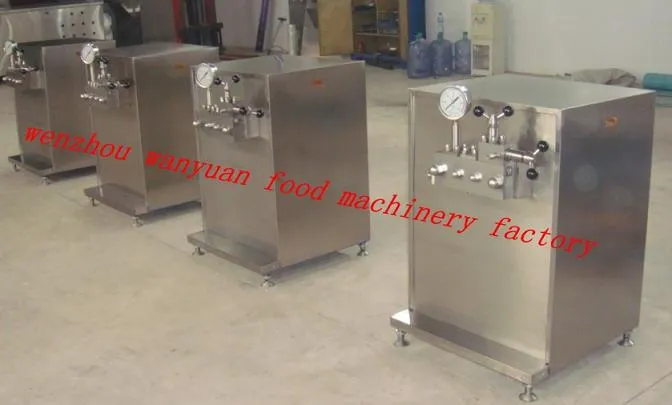

Juice / Milk High Pressure Homogenizer

Performance:
This equipment is a kind of versatile equipment which can make liquid substance into high-pressure spray or homogeneous. The high pressure homogenizer pump reciprocates the pump position, highly presses the liquid, fully mixes and refines the material.

Instruction:
The machine consists of:
Homogenization system, transmission system, cooling system and frame, etc.

The transmission system drives three reciprocating plunger pistons to force the material in the pump body of homogenization system forms pumping and compression.

Through the control of one way valve, the material liquid produces strong pressure.

Under such strong pressure, the material is effectively fined and homogenized under multi-effects of turbulent flow, vacancy, expansion without pressure and strong impact when passing through the homogenization system.

Application:
This homogenizer is widely used in food, dairy products, beverage, medicine industry, refining chemical industry and biological technology.

The high pressure homogenizer pump is also the important equipment for the powder manufacture. (Such as pharmaceutical industry, chemical industry, etc. )
The high pressure homogenizer can use to homogenize the dairy product material in high pressure, refine the fat globule, prevent or decrease the stratifying of the liquid material; Make the product much more nice, to improve the quality of the product.

Juice / Milk Homogenizer

Name	type	Rated flowL/H	Rated pressure Mpa	Working pressureMPa	Weight	Size (cm)	Power Kw
High pressure homogenizer	GJB500-25	500	25	0~20	670	100×75×110	5.5
	GJB1000-25	1000	25	0~20	670	100×75×110	7.5
	GJB1500-25	1500	25	0~20	720	100×75×110	11
	GJB1000-30	1000	30	0~24	720	100×75×110	11
	GJB2000-25	2000	25	0~20	1150	100×75×110	18.5
	GJB2500-25	2500	25	0~20	1250	100×75×110	22
	GJB3000-25	3000	25	0~20	1350	100×75×110	30
	GJB4000-25	4000	25	0~20	1400	100×75×110	37
	GJB5000-25	5000	25	0~20	2000	100×75×110	45
