Fruit Juice Vacuum Deaerator Vacuum Degasser

Customization:Available
Brand Name:Brand Name: Jimei
Type:Deaerator
Quantity:
Inquire Add to Basket

Basic Info.

Model NO.
WY-05
Processing
Vacuum Deaerator
Transport Package
Wooden Case
Origin
Wenzhou China

Product Description

Fruit juice vacuum deaerator-500L/h

1.Capacity: 0.1-0.5T
2.Cylinder Size: φ350*800mm
3.Material & Plate Thickness: SUS304,3mm
4.Vacuum Pump: 1.5Kw, Air sucking rate:0.8m³/min
5.Screw Pump: 0.37KW
6.Support stand: Stainless steel Material
7. Structure: Oval top end enclosure & cone at bottom, top cover end enclosure is connected with the cylinder by flange.
8. Accessories: DN60 sight glass, control box, vacuum pipe and the discharge valve.
9.Voltage: 380V, 3phases, 50HZ <can be customized>

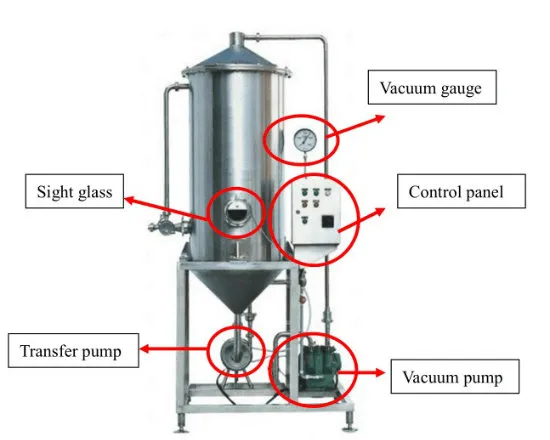

Vacuum degasser consist of vacuum pump, vacuum degassing tank and transfer pump.
Simple structure, convenient operation, easy maintenance, small size, beautiful appearance.

Fruit Juice Vacuum Deaerator Vacuum Degasser
Production capacity: 0.5, 1.5, 2.5, 5T/h
model capacity Vacuum degree power size
WY-05 5t/h 6.4 ~ 8.7 * 10 4 Pa 5.5Kw 1.8*1*2.5m
