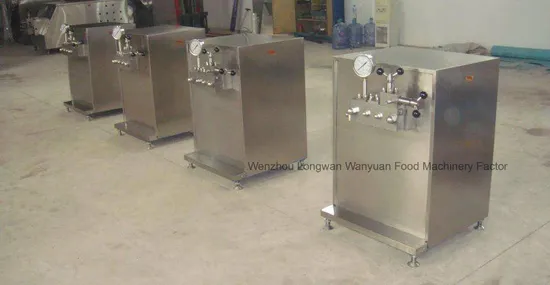

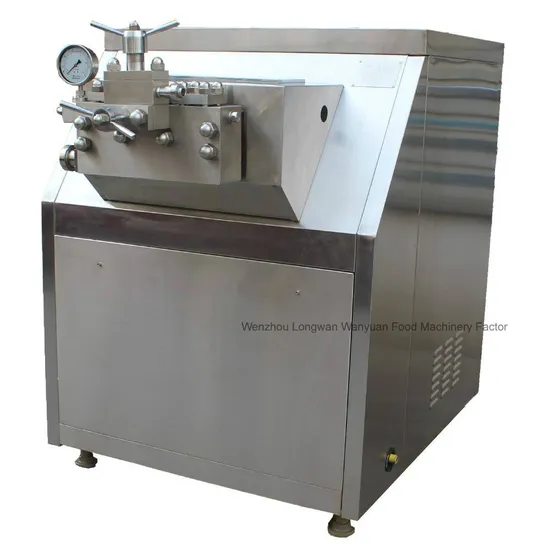

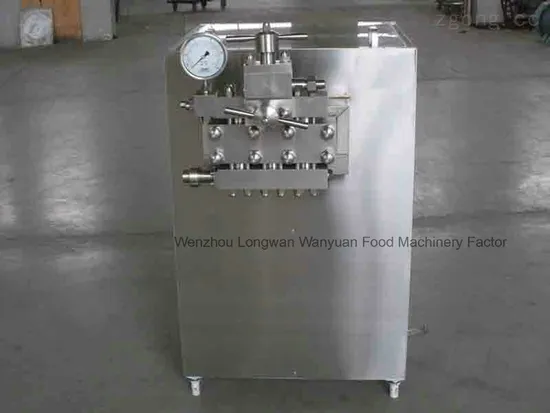

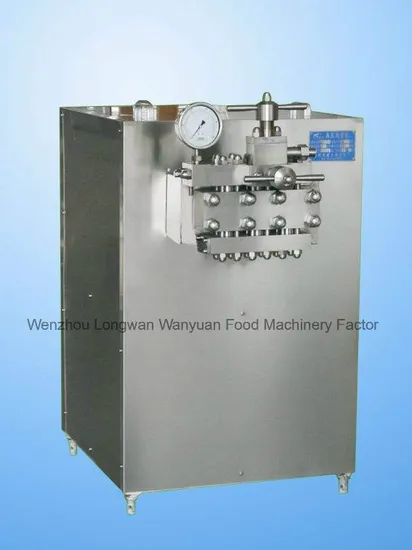

Stainless Steel Milk High Pressure Homogenizer
Performance:
This equipment is a kind of versatile equipment which can make liquid substance into high-pressure spray or homogeneous. The high pressure homogenizer pump reciprocates the pump position, highly presses the liquid, fully mixes and refines the material.
Instruction:
The machine consists of:
Homogenization system, transmission system, cooling system and frame, etc.
The transmission system drives three reciprocating plunger pistons to force the material in the pump body of homogenization system forms pumping and compression.
Through the control of one way valve, the material liquid produces strong pressure.
Under such strong pressure, the material is effectively fined and homogenized under multi-effects of turbulent flow, vacancy, expansion without pressure and strong impact when passing through the homogenization system.
Application:
This homogenizer is widely used in food, dairy products, beverage, medicine industry, refining chemical industry and biological technology.
The high pressure homogenizer pump is also the important equipment for the powder manufacture. (Such as pharmaceutical industry, chemical industry, etc. )
The high pressure homogenizer can use to homogenize the dairy product material in high pressure, refine the fat globule, prevent or decrease the stratifying of the liquid material; Make the product much more nice, to improve the quality of the product.
The below is homogenizer specification:
Name |
type |
Rated flowL/H
|
Rated pressure
Mpa |
Working pressureMPa |
Weight |
Size (cm) |
Power Kw
|
High pressure
homogenizer |
GJB500-25 |
500 |
25 |
0~20 |
670 |
100×75×110 |
5.5 |
GJB1000-25 |
1000 |
25 |
0~20 |
670 |
100×75×110 |
7.5 |
GJB1500-25 |
1500 |
25 |
0~20 |
720 |
100×75×110 |
11 |
GJB1000-30 |
1000 |
30 |
0~24 |
720 |
100×75×110 |
11 |
GJB2000-25 |
2000 |
25 |
0~20 |
1150 |
100×75×110 |
18.5 |
GJB2500-25 |
2500 |
25 |
0~20 |
1250 |
100×75×110 |
22 |
GJB3000-25 |
3000 |
25 |
0~20 |
1350 |
100×75×110 |
30 |
GJB4000-25 |
4000 |
25 |
0~20 |
1400 |
100×75×110 |
37 |
GJB5000-25 |
5000 |
25 |
0~20 |
2000 |
100×75×110 |
45 |
