Product Description
1, Introduction:

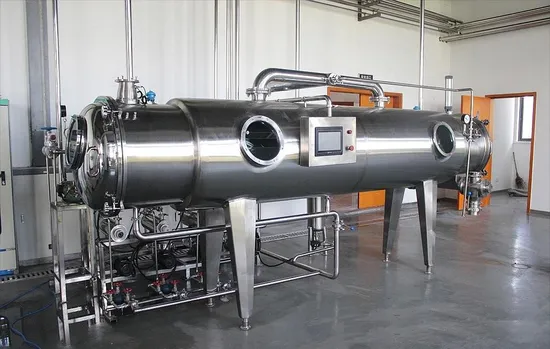

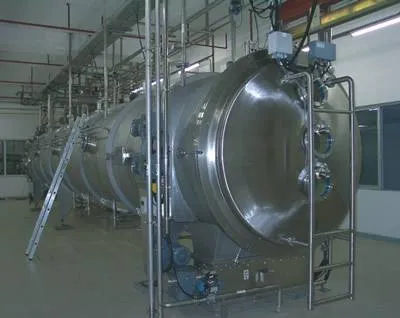

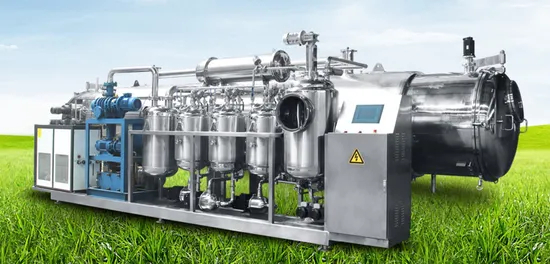

Vacuum & low temperature belt drying machine is a type of contact mode dryer with feature of continuous charging and discharging material. With special belt material,product is uniformly distributed on the drying belt which moves according to the preset speed. After being dried in heating zones with different temperature, Products is cooled down to normal temperature in the cooling zone .water content of the final products reach less than 5%. ln order to cut the product oxidation and make material uneasy to stick together.The final products of high quality can be reached by maintaining their original color,aroma and odor. In the whole process,it adopt automatic control system and CIP system,so that it can meet the requirements of GMP and HACCP
2, Capacity:
O.5 1 3 5 10 20 40 60 80 120;
3, machine is including the following units:
1) electric and steam system
2) material feed and charging system
3) heating system
4) material moving system
5). cooling and vacuum system
6) belt guiding system
7) shatter &discharge system
8) basic machine
4, Energy saving:
This machine have the advantages of the energy saving ,it is only 1/6 compare with the spray drier and 1/3 of vacuum dry box .so in the industry ,it can save the producing cost
5, Usage:
It is widely used in the Chinese medicine extract ointment,antjbiotics,vjtamjns,actjve and milk powder,tea powder ,food additive.etc
