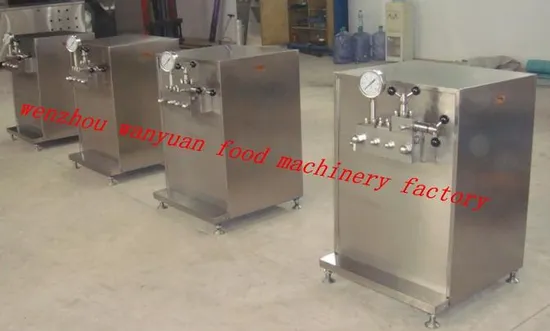

High Pressure Homogenization

Customization:Available
Process:Thermal Processing
Power Source:Electric
Quantity:

Basic Info.

Model NO.
GJB1500-25
Automatic Grade
Automatic
Application
Milk, Ice Cream, Soybean Milk
Customized
Customized
Model No.
Gjb2000-25
Mixer Type
Homogenizer
Working
Diffusion Mixer
Capacity
2000L/H
Max Working Pressure
20MPa
Power
15kw
Voltage
380V, 50Hz, 3 Phase
Material
Stainless Steel 304
Transport Package
Wooden Case
Specification
SUS304
Trademark
Wanyuan
Origin
Wenzhou China
HS Code
8438800000
Production Capacity
5000

Product Description

<span style="color: #ff0000; "><strong><span style="font-size: 14px; "><a target="_blank"><span style="color: #ff0000; ">High Pressure Homogenization</span></a></span></strong></span>
<span style="font-size: 14px; ">The Homogenization can be used widely in production, research and technical development of food, milk extract, drink, pharmacy, fine chemical, biotechnology and other fields. </span>
<span style="font-size: 14px; ">It also can be used in the production of emulsion, glue, fruit juice to avoid the or reduce the layering of the material liquid, improve the appearance of the material liquid, which can be more bright, fragrant and delicious. </span>
<span style="font-size: 14px; ">Homogenization or homogenisation is any of several processes used to make a <a title="Mixture">mixture</a> of two mutually non-soluble liquids the same throughout. (The prefix homo- coming from the Greek, meaning the same. )<a>[1]</a>This is achieved by turning one of the liquids into a state consisting of extremely small particles distributed uniformly throughout the other liquid. A typical example is the homogenization of milk, where the milk fat globules are reduced in size and dispersed uniformly through the rest of the milk. </span></p>
<p>

Name

type

Rated flowL/H


Rated pressure
Mpa

Working pressureMPa


Weight

Size (cm)

Power Kw


High pressure
homogenizer

GJB500-25

500

25

0~20

670

100×75×110

5.5

GJB1000-25

1000

25

0~20

670

100×75×110

7.5

GJB1500-25

1500

25

0~20

720

100×75×110

11

GJB1000-30

1000

30

0~24

720

100×75×110

11

GJB2000-25

2000

25

0~20

1150

100×75×110

18.5

GJB2500-25

2500

25

0~20

1250

100×75×110

22

GJB3000-25

3000

25

0~20

1350

100×75×110

30

GJB4000-25

4000

25

0~20

1400

100×75×110

37

GJB5000-25

5000

25

0~20

2000

100×75×110

45
