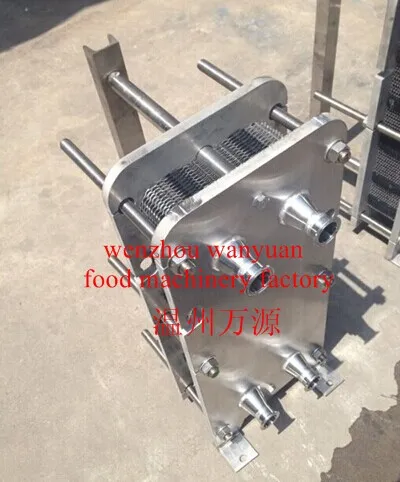

Customizable plate heat exchanger
Specifications
Sanitary plate heat exchanger
SS304, SS316L
CE, ISO9001: 2000
Reliable quality, beatiful surface
Product Description
Specification:

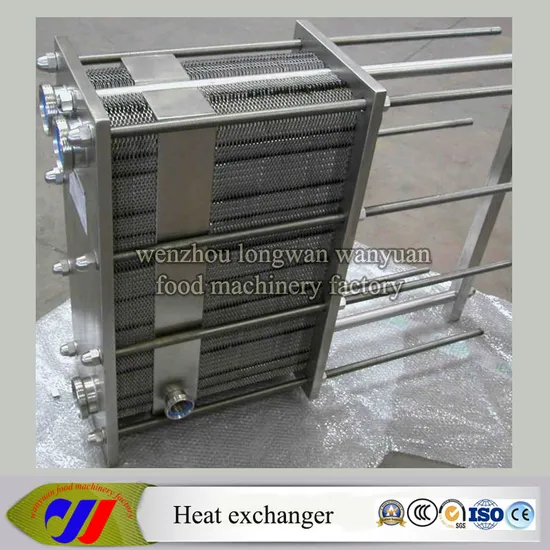

Name: Stainless Steel plate heat exchanger
Material: SS304, SS316
The plate heat exchanger has such features as high heat efficiency, low heat loss, compact structure, light weight, small land area and convenient installation and cleaning. As a good energy saving equipment, it is widely applied to the heating, cooling and evaporation of liquid and gas in the food, beverage and pharmacy etc. Industries.

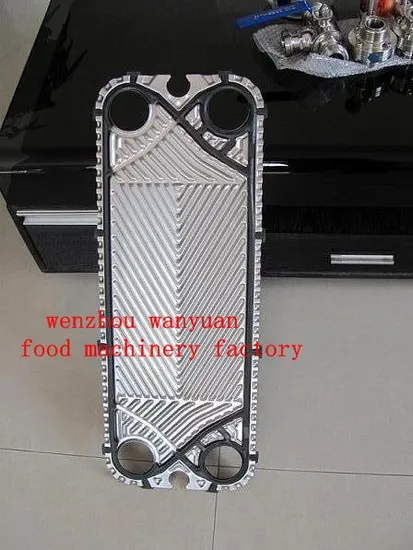

A plate heat exchanger is a type of heat exchanger that uses metal plates to transfer heat between two fluids. This has a major advantage over a conventional heat exchanger in that the fluids are exposed to a much larger surface area because the fluids spread out over the plates. This facilitates the transfer of heat, and greatly increases the speed of the temperature change. Plate heat exchangers are now common and very small brazed versions are used in the hot-water sections of millions of combination boilers. The high heat transfer efficiency for such a small physical size has increased the domestic hot water (DHW) flowrate of combination boilers. The small plate heat exchanger has made a great impact in domestic heating and hot-water. Larger commercial versions use gaskets between the plates, smaller version tend to be brazed.
If you interested in our plate heat exchanger, you can contact me feel free! !

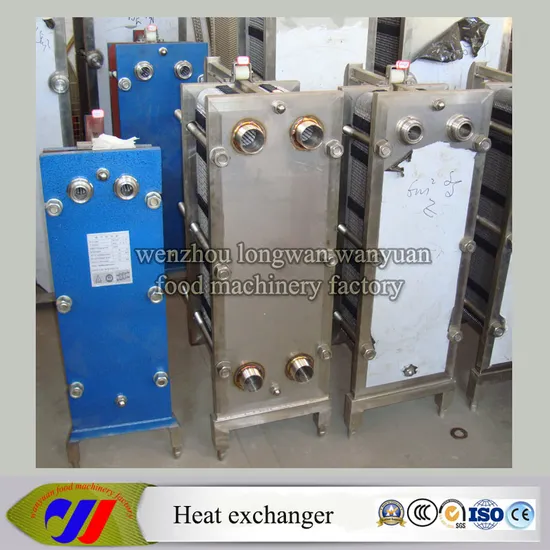

Stainless Steel Plate Heat Exchanger/Plate Heat Exchanger For Cooling/Heat Exchanger Tube
Wenzhou longwan wanyuan food machinery factory
The below is plate heat exchanger specification:
| specification | BR0.05 | BR0.1 | BR0.2 |
| heat tranfer area(2) | 0.05 | 0.1 | 0.2 |
| slad thinckness(mm) | 0.8 | 0.8 | 0.8 |
| angle hole dia(mm) | 38 | 60 | 75 |
| pipe fitting dis(mm | 28 | 38 | 46 |
