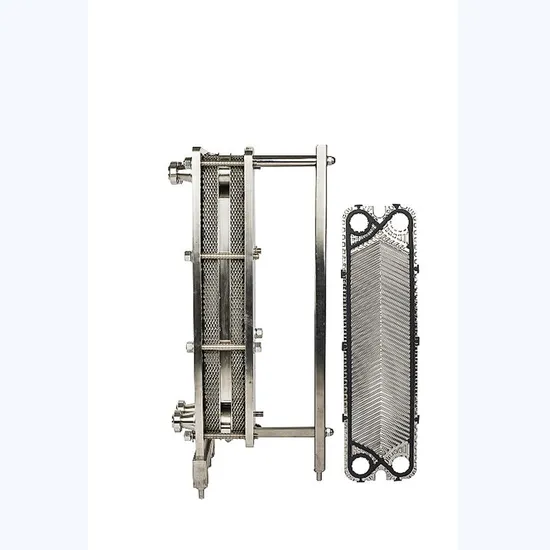

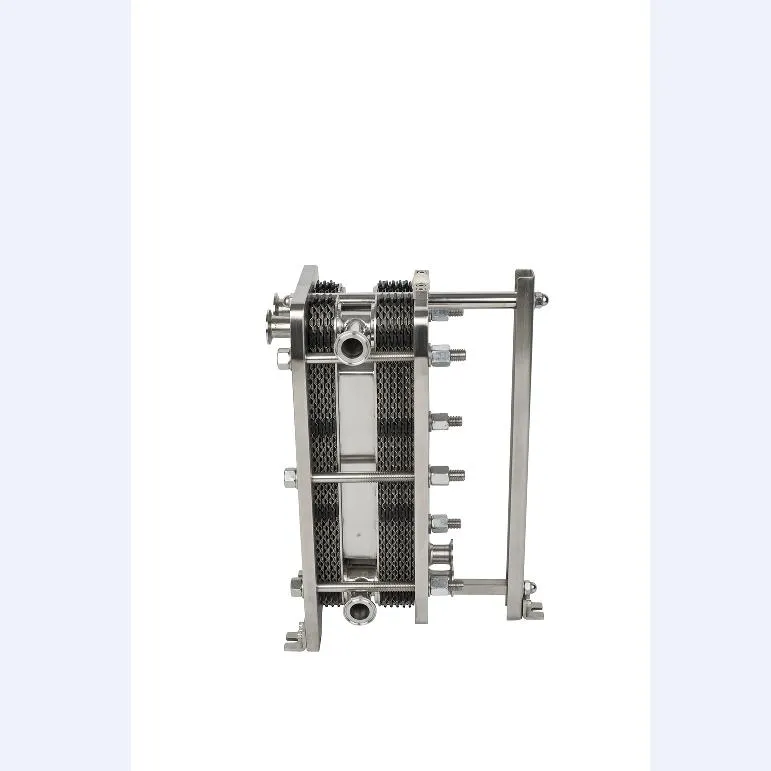

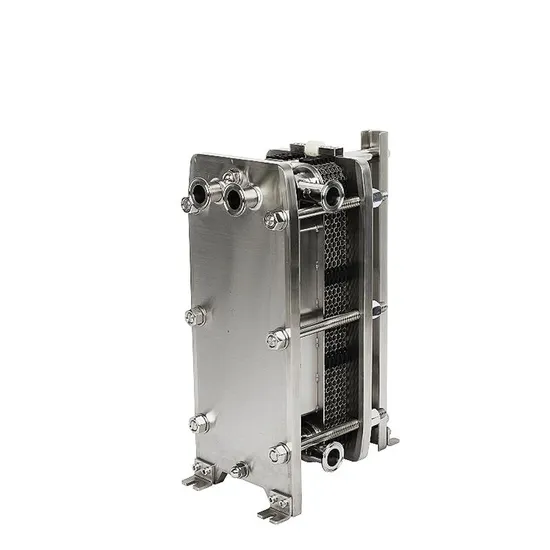

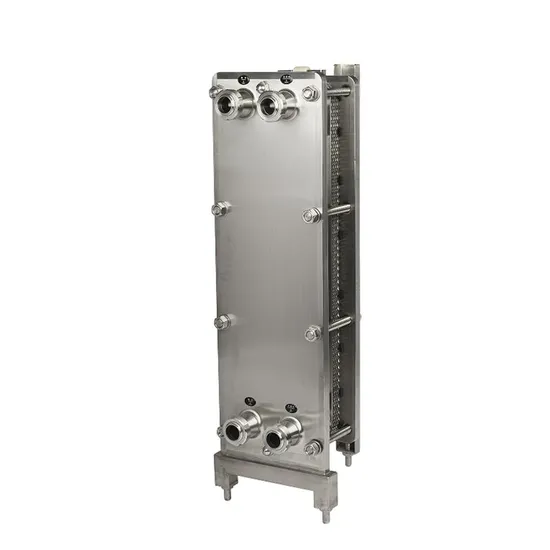

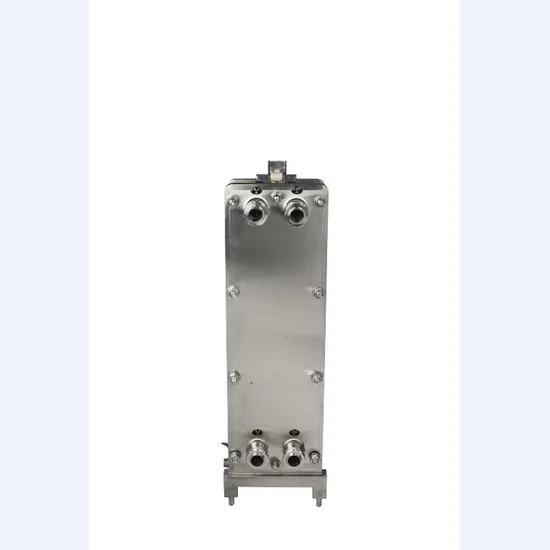

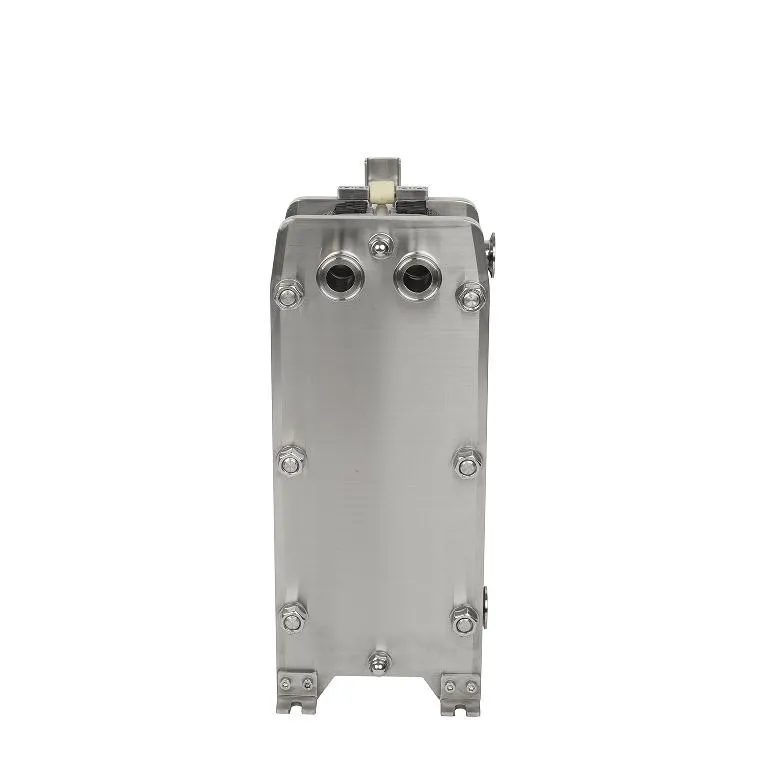

Stainless Steel Plate Type Heat Exchanger
Introduction:
The plate type heat exchanger is an ideal device for heat exchange of liquid--liquid and liquid--steam. It has such features as high heat exchanging efficiency, samll heat loss, compact structure, light weight, small land area, convenient installation and cleaning, wide application range, long service life etc...
Adaptability:
The dismountable plate type heat exchanger has outstanding adaptablity. After the installation, the metal plate groups can be increased or decreased to meet the technological requirements for expansion or contraction.
BR Plate material:
SUS304
SUS316L
TAI plate
The plate's character:
The plate has a wide range of size. The heat exchanging area of a single plate ranges from 0.02m2 to 1.8m2, with several types avaiable for selection. With wider applicability, the equipment can provide more options for user.
Complete plate shapes including V-shaped, straight, ball-shaped, direct/oblique and double V-shaped corrugation can meet the requirements in most service conditions.
The heating area of the series of plate type heat exchangers include various specifications such as 0.3-700m2. The automatic control is also available. The are expecially suitable for industries with higher sanitary requirements such as biochemical industry, pharmaceutical industry, food etc.
The minimum quantity is one set.
The below is Plate Heat Exchanger specification:
| specification | BR0.05 | BR0.1 | BR0.2 |
| heat tranfer area(2) | 0.05 | 0.1 | 0.2 |
| slad thinckness(mm) | 0.8 | 0.8 | 0.8 |
| angle hole dia(mm) | 38 | 60 | 75 |
| pipe fitting dis(mm | 28 | 38 | 46 |
