Plate Type Heat Exchanger
Plate heat exchanger has been widely used in metallurgy, mining, petroleum, chemical, electric power, medicine, food, chemical fiber, paper making, textile, shipbuilding, heating and other departments, can be used for heating, cooling, evaporation and condensation, sterilization, waste heat recovery, etc.
Plate Heat Exchanger basic structure:
1. Plate heat exchanger plate and plate heat exchanger sealing gasket
2. Fixed pressure plate
3. Activities keep plate
4. Clamp bolt
5. Top guide bar
6. Under the guide bar
7. Rear pillar
Plate Heat Exchanger range of application
Plate heat exchanger has such features as high heat efficiency, low heat loss, compact structure, light weight, small land area and convenient, iy is widely applied to the heating, cooling and evaporation of liquid and gas in food, beverage and pharmacy ect. Industries.

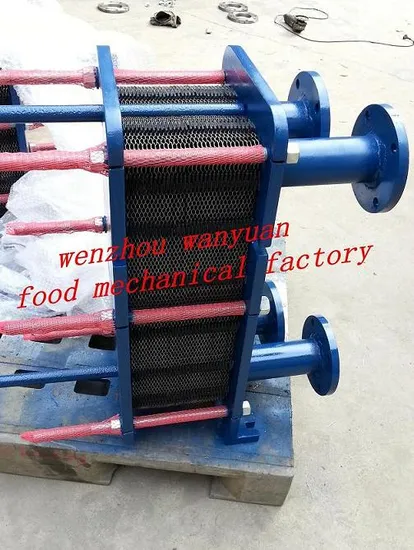

Wenzhou wanyuan food machinery factory- - Plate type heat exchanger
The following is the specifications of Plate heat exchanger:
| specification | BR0.05 | BR0.1 | BR0.2 |
| heat tranfer area(2) | 0.05 | 0.1 | 0.2 |
| slad thinckness(mm) | 0.8 | 0.8 | 0.8 |
| angle hole dia(mm) | 38 | 60 | 75 |
| pipe fitting dis(mm | 28 | 38 | 46 |
