Double Layer Hot Water Sterilizer Retort

Customization:	Available
Process:	Thermal Processing
Power Source:	Electric

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

GT7C720

Automatic Grade

Semi-Automatic

Application

Canned Food

Customized

Working Pressure of Autoclave

0.3mpa

Designed Pressure of Autoclave

0.35mpa

Design Temperature

147 Degree C

Working Temperature

121 Degree C

Usage

Canned Food, Glass Jar, Pouch

Transport Package

Wooden Case

Specification

SUS304

Trademark

Wanyuan

Origin

Wenzhou China

HS Code

8479819000

Production Capacity

5000

Product Description

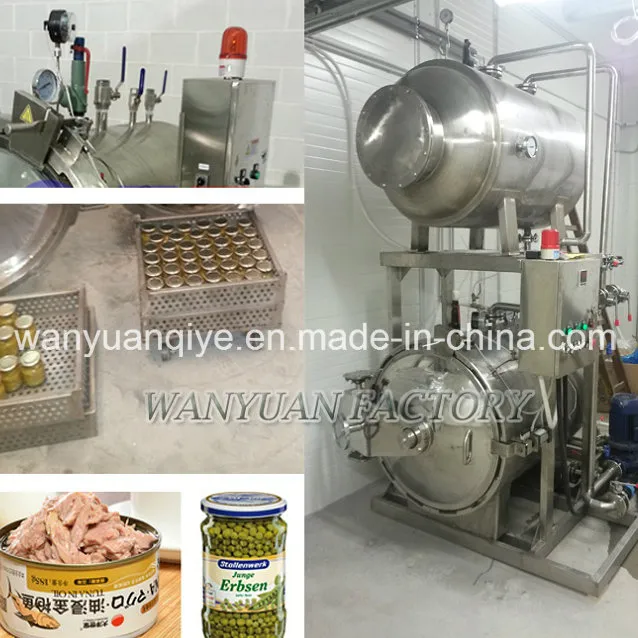

Double layer hot water sterilizer retort
Water spray resorts is by direct injection steam, heat up the water of the hot water tank to the predetermined temperature, and then injection process tank, and make the process water pot continuously circulation, and through the water vapor mixer heating sterilization cycles.

Characteristics
1. This equipment are new type products which developed by double sterilization kettle extension, its sterilization effect is the same as the double sterilization kettle, output 1 times higher than it.
2. Sterilization with hot water can be used in circulation between the two sterilization kettles; Users can greatly reduce the investment cost.
3. Use the screen can touch control
4. Pressure, temperature, sterilization time are automatic control, it's more accurate than manual control.
5. Pressure and temperature data in digital displayed on the touch screen.
6. With the temperature, pressure, curve record function and can print at any time.

Usage
Fully functional autoclave is suitable for all kinds of high temperature resistant packaging material: Plastic containers and soft bag packaging.

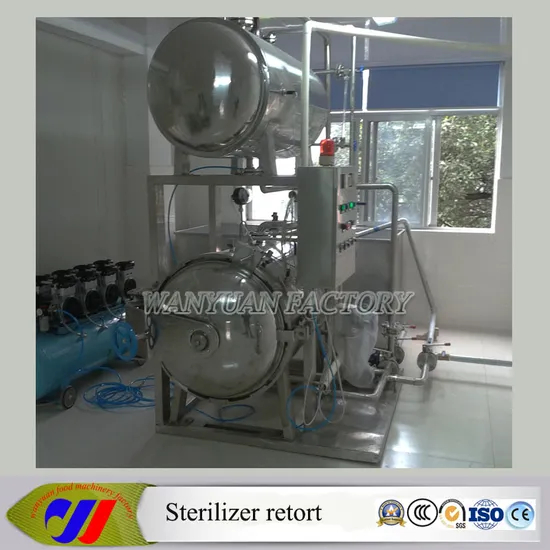

Double Layer Hot Water Sterilizer Retort

Wenzhou Wanyuan Food Mechanical Factory- - Sterilizer retort
Autocalve sterilizer retort specification

ITEMS	UNITS	SPECIFICATION
Diameter of the vessel body	mm	DN1100	DN1300	DN1500
Number of baskets	Pieces	4	4	4
Maximum working pressure	Mpa	0.35	0.35	0.35
Maximum working temperature	°C	137	137	137
Steam pressure	MPa	0.6	0.6	0.6
Steam consumption	Kg/Cycle	300	400	500
Cooling water pressure	MPa	0.3	0.3	0.3
Consumption of cooling water	M 3 /Cycle	4~6	5~8	8~12
Compressed air consumption	M 3 /min	0.6~0.8	0.6~1.0	0.8~1.2
Electrical capactiy	KW	18	26	30
Dimension	LxWxH(mm)	5800x1900x3600	5800x2000x4000	5800x2200x4400
