Steam water spray sterilizer autoclave retort for glass jars 1. steam spray sterilizer 2. 500L sterilization capacity
Usage:
This sterilizer is widely used for the high-temperature sterilization in foodstuff, beverage, soft can, medical needle and etc. Especially for second sterilization for foodstuff which packed in pouch or flexible bag.

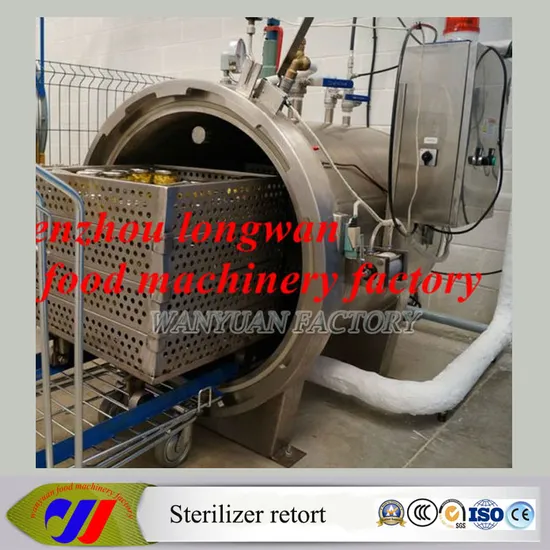

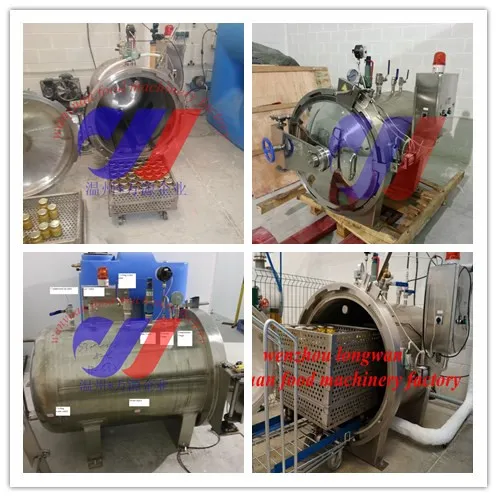

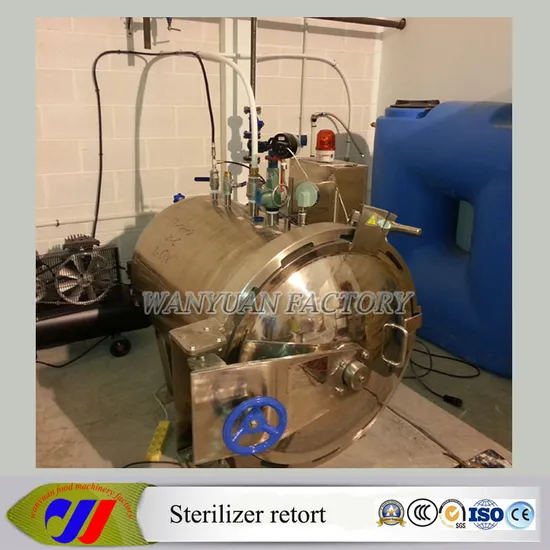

Sterilizer autoclave retort pictures

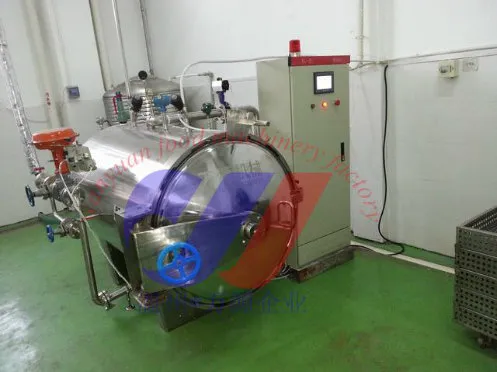

Autoclave sterilizer retort with PLC control cabinet:
Steam water spray sterilizer autoclave retort for glass jars
wenzhou longwan wanyuan food machinery factory Autoclave sterilizer retort specification | Model | GT7C 720 | GT7C 1200 | GT7C 2000 | GT7C 2400 |
| Category | Elementary Pressure Vessel |
| Internal Diameter (mm) | 900 | 1000 | 1100 | 1200 |
| Volume( m³) | 1.2 | 2 | 3.5 | 4.2 |
| Design Temperature | 143 degree C |
| Working Temperature | 123 degree C |
| Design Pressure | 0.3 MPa |
| Working Pressure | 0.15 MPa |
| Working Medium | water\steam\compressed air |
| Main Pressure Part Material | SS304 |
| Welding Coefficient | 0.7 |
| Corrosion Allowance | 1mm |
| Net Weight(kg) | 600 | 1100 | 1700 | 2000 |
| External Dimensions(mm) | length | 2100 | 2800 | 3700 | 4000 |
| Width | 1300 | 1450 | 1600 | 1600 |
| height | 1650 | 1700 | 1800 | 1900 |
Autoclave sterilizer retort with PLC control cabinet:
