Electric heating sterilization equipment bottle sterilizer for juice

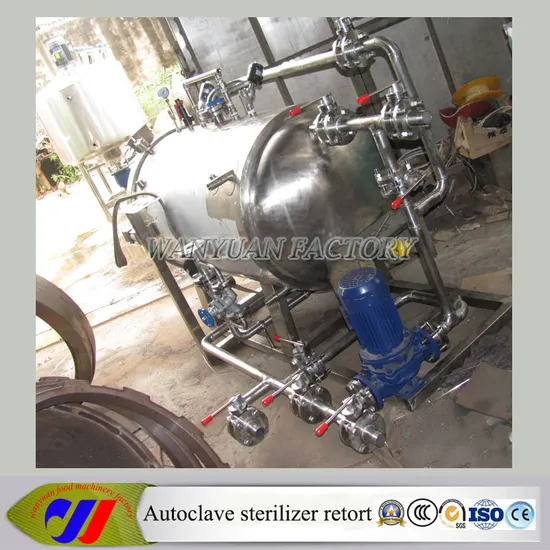

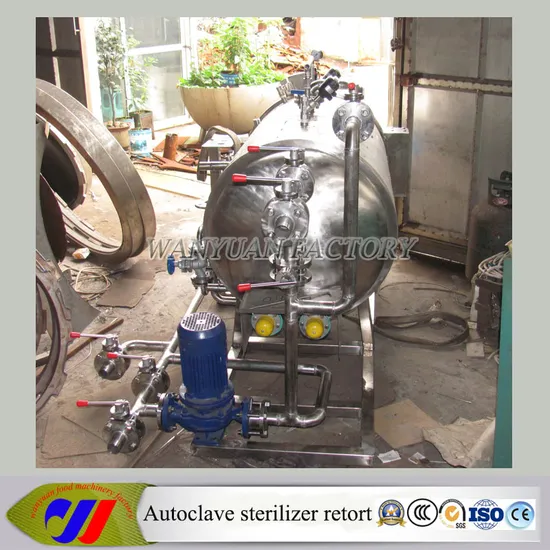

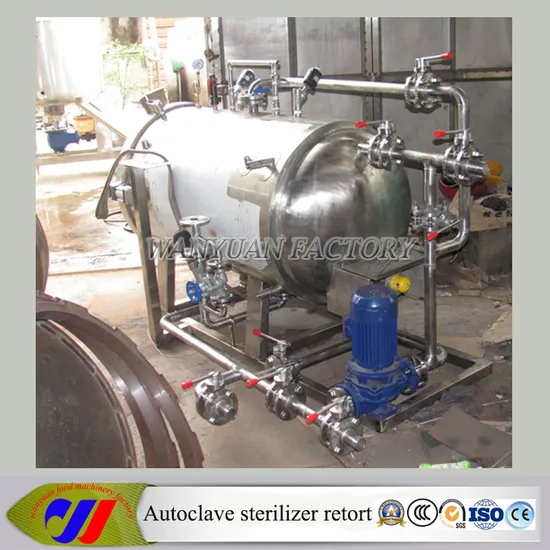

This is sterilizer's picture
Sterilizer For Milk And Juice (Autoclave Sterilizer Retort)
The sterilizing machine of this series is suitable to heat and cool the liquid not corrosive to the stainless steel, especially for the heat-sensitive liquid with granules, fibers and high viscosity. This retort sterilizer has high efficiency in heat exchange, can work for long time continuously, and is easy to operate, clean and repair due to its simple structure.
Our retort sterilizer apply to for the sterilization of milk, beverage, juice, soft drink, soy milk, and other similar liquid materials, and it is suitable for aseptic packaging, like PET packing, plastic bottle and glass bottle, etc.
The technical flow progress of autoclave sterilizer retort can be made integrated designing, in accordance with different requirements of various material heating, sterilizing, thermal preservation and cooling. The retort sterilizer also obtain all kinds of complete protections with highly automatic and steady accuracy control.
Wenzhou Wanyuan Food Mechanical Fatory
Electric heating sterilization equipment bottle sterilizer for juice

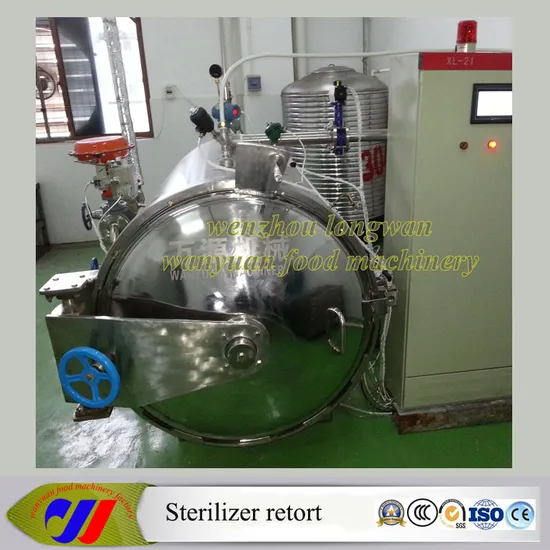

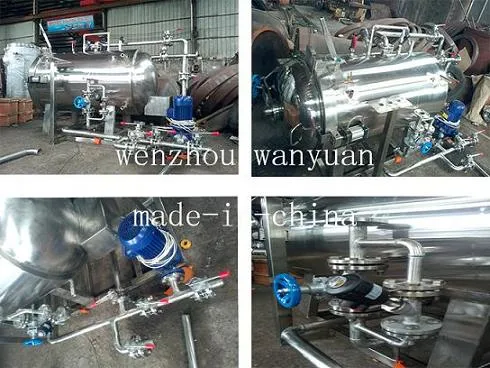

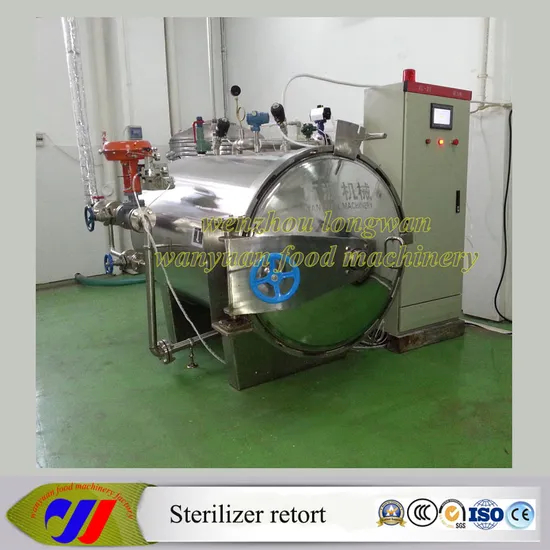

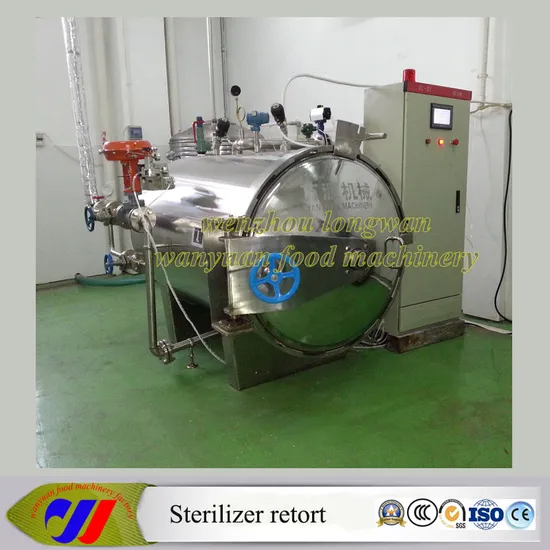

The below is autoclave sterilizer retort:
| Model | GT7C 720 | GT7C 1200 | GT7C 2000 | GT7C 2400 |
| Category | Elementary Pressure Vessel |
| Internal Diameter (mm) | 900 | 1000 | 1100 | 1200 |
| Volume( m³) | 1.2 | 2 | 3.5 | 4.2 |
| Design Temperature | 143 degree C |
| Working Temperature | 123 degree C |
| Design Pressure | 0.3 MPa |
| Working Pressure | 0.15 MPa |
| Working Medium | water\steam\compressed air |
| Main Pressure Part Material | SS304 |
| Welding Coefficient | 0.7 |
| Corrosion Allowance | 1mm |
| Net Weight(kg) | 600 | 1100 | 1700 | 2000 |
| External Dimensions(mm) | length | 2100 | 2800 | 3700 | 4000 |
| Width | 1300 | 1450 | 1600 | 1600 |
| height | 1650 | 1700 | 1800 | 1900 |
