High Efficient Autoclave Sterilization Machine for Meat Pack

Customization:	Available
Process:	Thermal Processing
Power Source:	Steam

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

GT7C1200

Application

Canned Food

Customized

Working Pressure of Autoclave

0.3MPa

Designed Pressure of Autoclave

0.35MPa

Design Temperature

147 Degree C

Working Temperature

121 Degree C

Usage

Canned Food, Glass Jar, Pouch

Transport Package

Wooden Case

Origin

Wenzhou China

Product Description

Autoclave sterilization Specifications
Pressure retort
1. Can sterilize all kinds of retort pouch food.
2. Automatic and semi-automatic control system

High efficient autoclave sterilization machine
Sterilizing machine
Pressure retort
1. Can sterilize all kinds of retort pouch food.
2. Automatic and semi-automatic control system

Autoclave sterilization Equipment features
1. Temperature evenly in the retort
Ensure temperature evenly in the retort.
2. Adopt multi-segment warming, disinfection completely
According to different products adopt multi-segment warming disinfection, multi-segment temperature drop, keep the original color of the product unchanged.
3. Indirect heating prevent the pollution between the steam and the goods
Thanks to using the cycle pure water, the retort internal surface and the goods' surface clearly brightly without furr and pollution.
4. Pressure to provide reasonable control fit on nitrogen packaging disinfection
Make every product better disinfection.
5. Computer fully automatic control system.
Use the most advanced computer control system of the world
All the disinfection procedures adopt computer automated control, without manual operation
6. F value measurement function
7. Storage disinfection formula

Full function of disinfection, precision bactericidal effect, best high-pressure disinfection methods
With online sterilization validation recording devices to record the whole validation value during sterile process
The best heat exchange efficiency: Recycled water atomization, steam heating atomized water directly
Unique autoclave sterilization technology, at least the steam supply, advanced exhaust-free sterile method, to create the lowest cost-effective of food processing
High precision batch retort thermal distribution, the temperature accuracy was guarantee in ± 0.5 ° C
Aseptic cooling system: With water circulation cooling system, absolutely no chlorine residue
Color screen operation interface, whole sterilization procedures was micro-computer automatic control system

Autoclave sterilization Applicable scope:
Soft package: Aluminium foil bag, high temperature cooking bag, can...

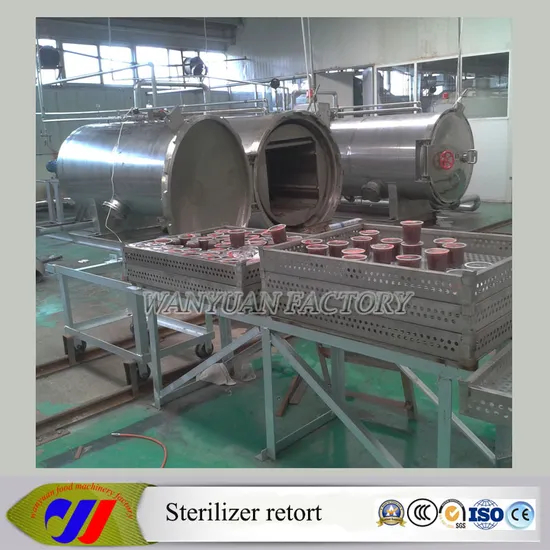

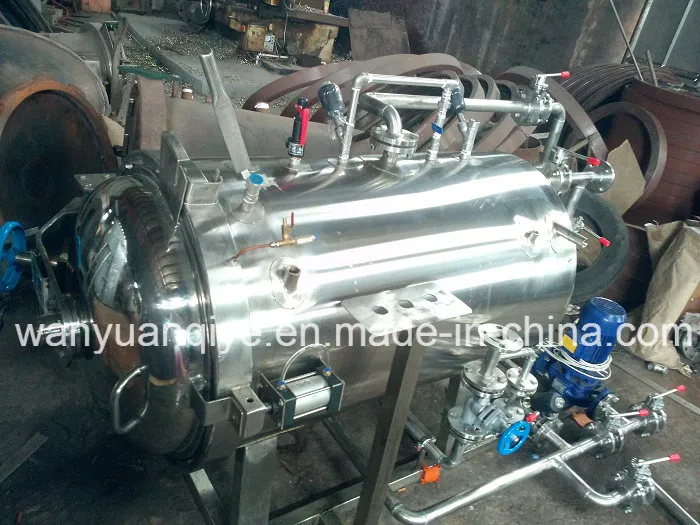

Horizontal pressure retort, autoclave sterilization
Wenzhou wanyuan food machinery factory
The below is the specification of Autoclave sterilizer retort:

Model		GT7C 720	GT7C 1200	GT7C 2000	GT7C 2400
Category		Elementary Pressure Vessel
Internal Diameter (mm)		900	1000	1100	1200
Volume( m³)		1.2	2	3.5	4.2
Design Temperature		143 degree C
Working Temperature		123 degree C
Design Pressure		0.3 MPa
Working Pressure		0.15 MPa
Working Medium		water\steam\compressed air
Main Pressure Part Material		SS304
Welding Coefficient		0.7
Corrosion Allowance		1mm
Net Weight(kg)		600	1100	1700	2000
External Dimensions(mm)	length	2100	2800	3700	4000
	Width	1300	1450	1600	1600
	height	1650	1700	1800	1900
