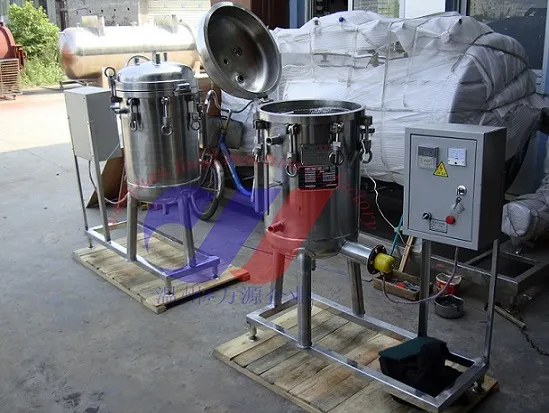

Stainless Steel Electric Heating Vertical Sterilizer Retort

Customization:	Available
Condition:	New
Customized:	Customized

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

DN400*500

Composition

Sterilization Equipment

Processing Material

Natural Ingredients

Process

Thermal Processing

Working Pressure of Autoclave

0.3mpa

Designed Pressure of Autoclave

0.35mpa

Design Temperature

147 Degree C

Working Temperature

121 Degree C

Usage

Canned Food, Glass Jar, Pouch

Transport Package

Wooden Case

Specification

SUS304

Trademark

Wanyuan

Origin

Wenzhou China

HS Code

8479819000

Production Capacity

5000

Product Description

Electric heating vertical sterilizer retort

Sterilization machine Classification:
1. According to heating type: Steam Heating UHT and Electric Heating sterilizer
2. According to material: SUS304/SUS316L and carbon steel
3. According to structure: Vertical and horizontal

Electric heating vertical sterilizer retort
Retort sterilizer(high pressure sterilizer) adopts casing structure, has the characteristics such as high efficiency, energy saving and simple operation. Due to the short heating time, small nutrition loss.
Sterilizer is suitable for the liquid material beverage. Such as fresh milk, fruit juice drink, wine drink, soybean milk and Chinese medicine, as well as the sticky material (for example, sweet condensed milk) upon completing with high-pressure homogenizer.
If the homogenizer is set together, autoclave sterilizer can also be used for high viscosity materials such as sugar beets and condensed milk and so on.

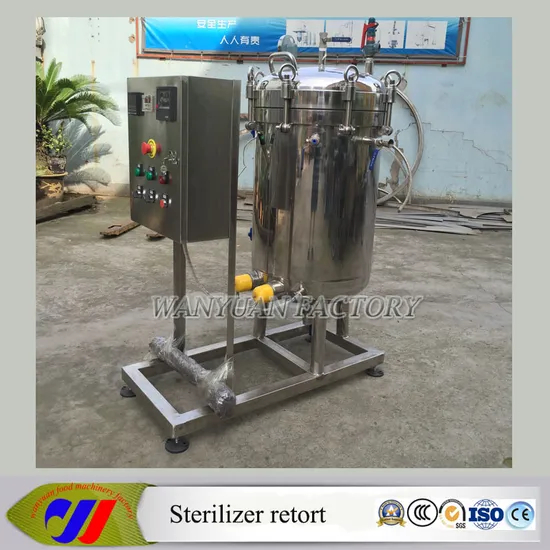

Stainless Steel Electric Heating Vertical Sterilizer Retort

Wenzhou wanyuan food machinery factory- Autocalve sterilizer retort
Here below the autocalve sterilizer retort specification:

Model		GT7C 720	GT7C 1200	GT7C 2000	GT7C 2400
Category		Elementary Pressure Vessel
Internal Diameter (mm)		900	1000	1100	1200
Volume( m³)		1.2	2	3.5	4.2
Design Temperature		143 degree C
Working Temperature		123 degree C
Design Pressure		0.3 MPa
Working Pressure		0.15 MPa
Working Medium		water\steam\compressed air
Main Pressure Part Material		SS304
Welding Coefficient		0.7
Corrosion Allowance		1mm
Net Weight(kg)		600	1100	1700	2000
External Dimensions(mm)	length	2100	2800	3700	4000
	Width	1300	1450	1600	1600
	height	1650	1700	1800	1900
