Uht automatic control Pasteurizer machine
Dairy milk plate type yogurt pasteurization machine
Plate type sterilizer unit is suited for the liquid product with fiber and particulates(fruit beverage, vegetable beverage and especially for the high viscosity. Products(fruit paste, juice with pulp, pudding, sauces gravy), also for low-acid beverage and neutral beverage(peanut milk, yoghurt and tea)
Characteristic:
1. High effective heat tranfer
2. High regenerative effect
3. Easy to operate(automatic control)
4. Accurate control of sterilizing temperature.
5. Can be design as a multi-purpose plant
Brief Introduction of plate type sterilizer unit
1. This complete set of sterilization equipment could be produced by customers' requests, like size, capacity.
2. Plate type sterilizer unit is made of high quality stainless steel and fully automatic. It has easy and flexible operation and easy maintenance.
3. Pasteurization machine is applied for heating, heat, sterilization etc.
4. Sterilizing Machine saves space by occupying small room and is of high heat recycling for ability demands of sterilization.
5. Our company is capable of manufacturing fully automatic sterilizer and CIP unit which are equipped to Aseptic Filling.

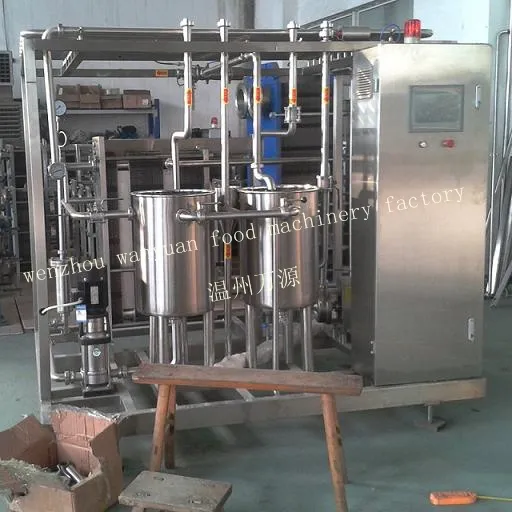

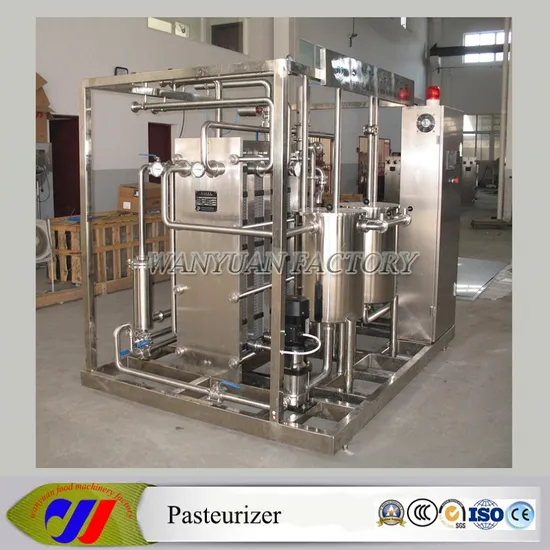

The picture of Plate Type Yogurt Pasteurization Machine
Remark:
1. Electric heating device is sub-control system, which could divided into several groups electro thermal device, Each one power control system helps to heat up fast, low-power and good insulation effect excellent
2. When you contact with us for the quotation, pls supply the parmeters in the table
Application:
1. It is applied for Pasteurizing, Ultra-pasteurizing, UHT sterilizing
2. For dairy, juice, tea drink, beer, milk, energy drinks, etc.
Plate Type Yogurt Pasteurization Machine
Wenzhou Wanyuan Food Machinery Factor- - Pasteurizer machine
Here below is Pasteurizer machine specifications:
| Main Technical parameters |
| Model | PLJ-3000 | PLJ-6000 | PLJ-10000 |
| Capacity(b/h) | 2000-3000 | 5000-6000 | 9000-10000 |
| Bottle inlet temp. | 3-5 |
| Bottle outlet temp. | < 45 |
| Sterilizing temp. | 62-85 |
| Sterilizing time | 10 |
| Steam pressure | 0.5-0.6MPa |
| Width of belt(m) | 1.22 | 1.5 | 2 |
| Circling water(m3/h) | 6.3 | 10 | 20 |
| Water consumption(m3/h) | 1 | 1.5 | 2 |
| Water pressure: ≥ 0.2Mpa, water temp. is 20C |
| kg/h steam consumption | 200 | 350 | 600 |
| Overall dimension(mm) | 8000× 1500× 1650 | 10000× 1800× 1650 | 15000× 2200× 1650 |
| Total weight(kg) | 4000 | 8000 | 12000 |
