| Customization: | Available |
|---|---|
| After-sales Service: | Warranty 1 Year |
| Warranty: | Warranty 1 Year |
| Quantity: | |
|---|---|

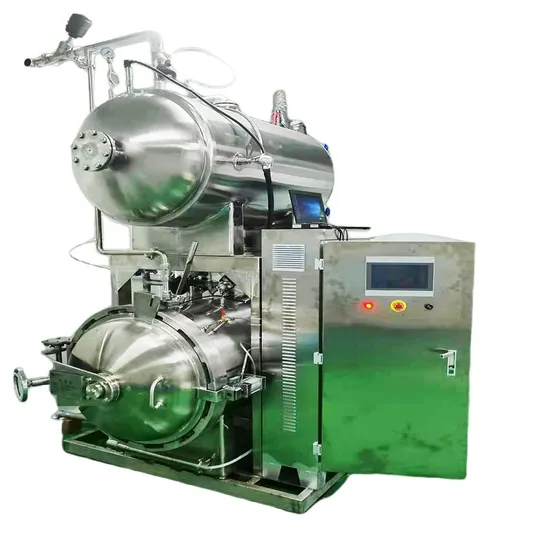

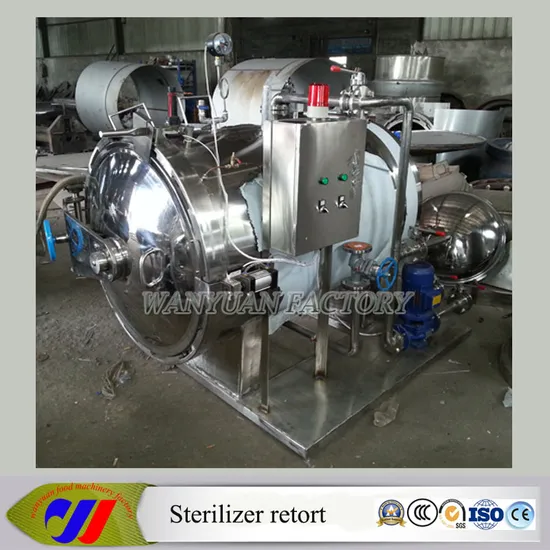

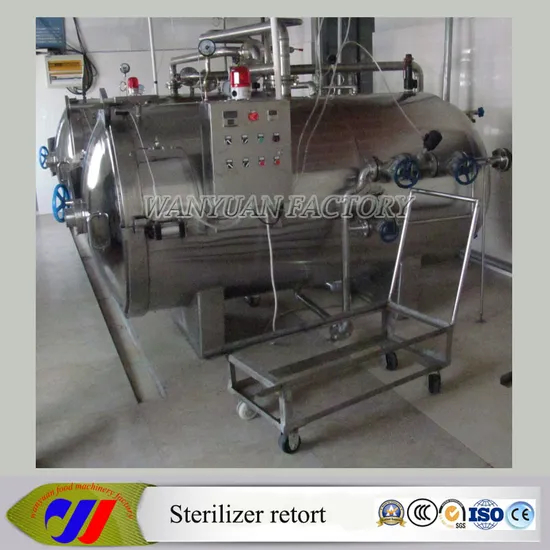

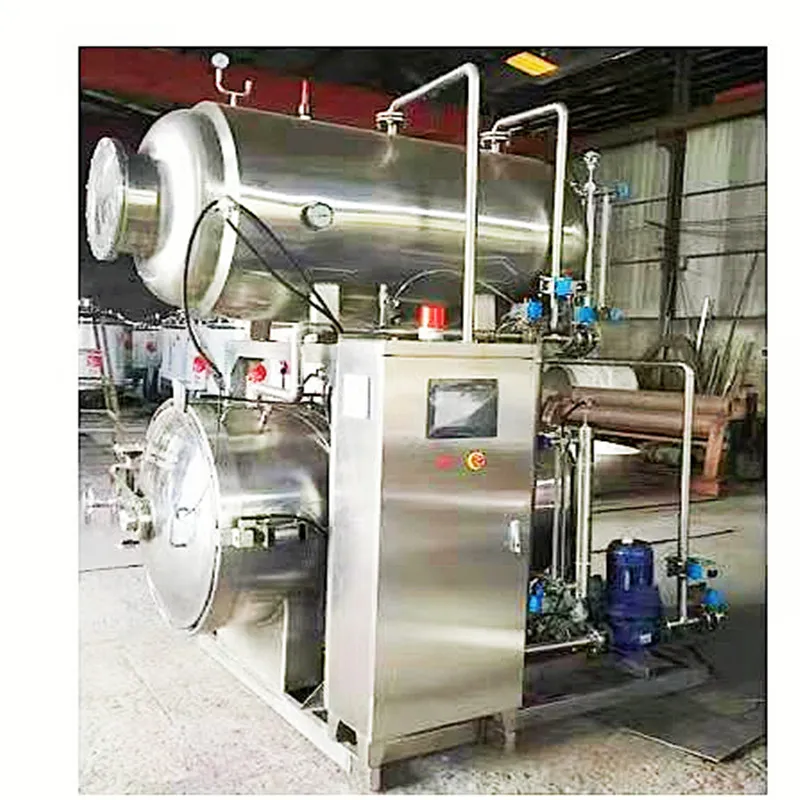

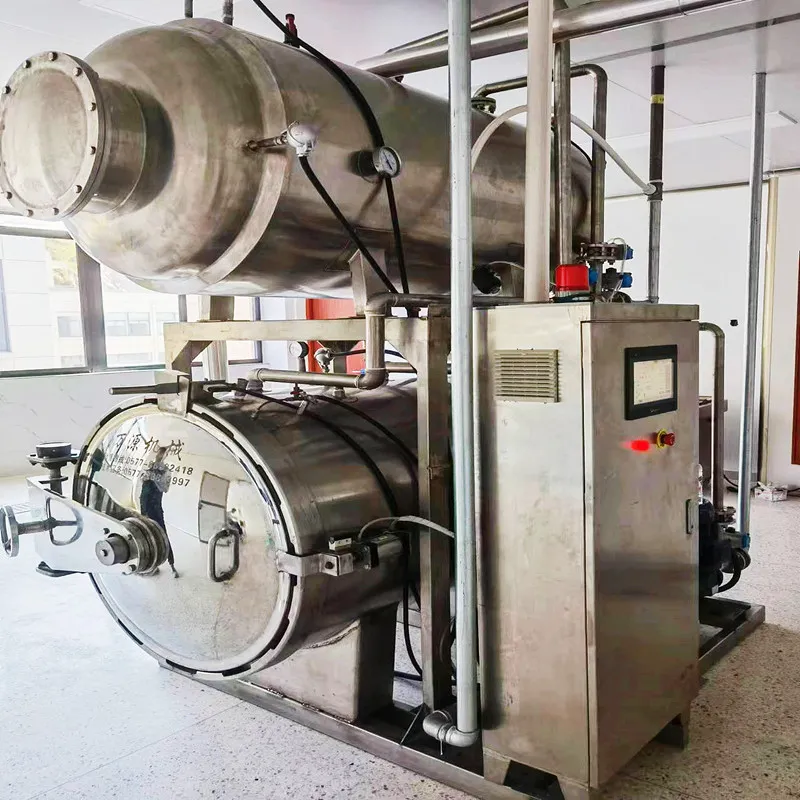

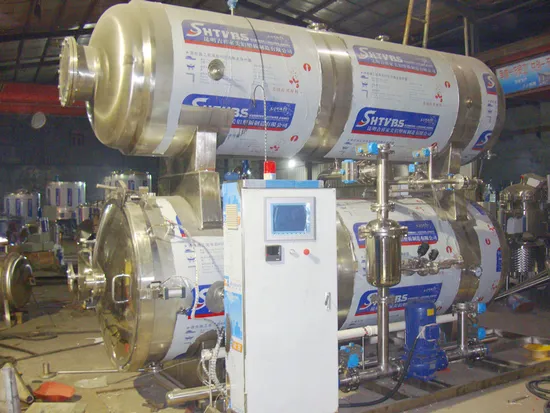

The Food And Beverage Sterilizer Autoclave Retort, manufactured by Wenzhou Longwan Wanyuan Food Machinery Factory, is a versatile sterilization equipment designed for various industries.
The retort autoclave is widely used in the processing of various products, including meat products, soybean products, egg products, poultry, fruits and vegetables, tea drinks, snack food, and pharmaceutical industry.
The sterilizing machine of this series is suitable to heat and cool the liquid not corrosive to the stainless steel, especially for the heat-sensitive liquid with granules, fibers, and high viscosity.
This retort sterilizer has high efficiency in heat exchange, can work for a long time continuously, and is easy to operate, clean, and repair due to its simple structure.
Our retort sterilizer is suitable for the sterilization of milk, beverage, juice, soft drink, soy milk, and other similar liquid materials. It is also suitable for aseptic packaging, like PET packing, plastic bottle, and glass bottle, etc.
The technical flow progress of autoclave sterilizer retort can be made integrated designing, in accordance with different requirements of various material heating, sterilizing, thermal preservation, and cooling.
The retort sterilizer also obtains all kinds of complete protections with highly automatic and steady accuracy control.
Company name: Wenzhou Longwan Wanyuan Food Machinery Factory
Specification: [Warranty: 1 Year], [Thermal Processing]
| Model | GT7C 720 | GT7C 1200 | GT7C 2000 | GT7C 2400 | |
| Category | Elementary Pressure Vessel | ||||
| Internal Diameter (mm) | 900 | 1000 | 1100 | 1200 | |
| Volume( m³) | 1.2 | 2 | 3.5 | 4.2 | |
| Design Temperature | 143 degree C | ||||
| Working Temperature | 123 degree C | ||||
| Design Pressure | 0.3 MPa | ||||
| Working Pressure | 0.15 MPa | ||||
| Working Medium | water\steam\compressed air | ||||
| Main Pressure Part Material | SS304 | ||||
| Welding Coefficient | 0.7 | ||||
| Corrosion Allowance | 1mm | ||||
| Net Weight(kg) | 600 | 1100 | 1700 | 2000 | |
| External Dimensions(mm) | length | 2100 | 2800 | 3700 | 4000 |
| Width | 1300 | 1450 | 1600 | 1600 | |
| height | 1650 | 1700 | 1800 | 1900 | |
The Food And Beverage Sterilizer Autoclave Retort, manufactured by Wenzhou Longwan Wanyuan Food Machinery Factory, is a versatile sterilization equipment designed for various industries.
The retort autoclave is widely used in the processing of various products, including meat products, soybean products, egg products, poultry, fruits and vegetables, tea drinks, snack food, and pharmaceutical industry.
The sterilizing machine of this series is suitable to heat and cool the liquid not corrosive to the stainless steel, especially for the heat-sensitive liquid with granules, fibers, and high viscosity.
This retort sterilizer has high efficiency in heat exchange, can work for a long time continuously, and is easy to operate, clean, and repair due to its simple structure.
Our retort sterilizer is suitable for the sterilization of milk, beverage, juice, soft drink, soy milk, and other similar liquid materials. It is also suitable for aseptic packaging, like PET packing, plastic bottle, and glass bottle, etc.
The technical flow progress of autoclave sterilizer retort can be made integrated designing, in accordance with different requirements of various material heating, sterilizing, thermal preservation, and cooling.
The retort sterilizer also obtains all kinds of complete protections with highly automatic and steady accuracy control.
Company name: Wenzhou Longwan Wanyuan Food Machinery Factory
Specification: [Warranty: 1 Year], [Thermal Processing]
| Model | GT7C 720 | GT7C 1200 | GT7C 2000 | GT7C 2400 | |
| Category | Elementary Pressure Vessel | ||||
| Internal Diameter (mm) | 900 | 1000 | 1100 | 1200 | |
| Volume( m³) | 1.2 | 2 | 3.5 | 4.2 | |
| Design Temperature | 143 degree C | ||||
| Working Temperature | 123 degree C | ||||
| Design Pressure | 0.3 MPa | ||||
| Working Pressure | 0.15 MPa | ||||
| Working Medium | water\steam\compressed air | ||||
| Main Pressure Part Material | SS304 | ||||
| Welding Coefficient | 0.7 | ||||
| Corrosion Allowance | 1mm | ||||
| Net Weight(kg) | 600 | 1100 | 1700 | 2000 | |
| External Dimensions(mm) | length | 2100 | 2800 | 3700 | 4000 |
| Width | 1300 | 1450 | 1600 | 1600 | |
| height | 1650 | 1700 | 1800 | 1900 | |
