Vertical Sterilizer Retort for Kinds of High Temperature Resistant Packaging

Customization:	Available
Application:	Milk, Canned Food
Customized:	Customized

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

GT7C360

Designed Pressure of Autoclave

0.35mpa

Design Temperature

147 Degree C

Working Temperature

121 Degree C

Usage

Canned Food, Glass Jar, Pouch

Transport Package

Wooden Case

Origin

Wenzhou China

Product Description

Vertical Sterilizer Retort for kinds of High temperature resistant packaging
Wanyuan Brand Electric heating autoclave(sterilizer)
1. Counter pressure Sterilizer
2. Food sterilizer(steam sterilizer, retort sterilizer)

Sterilization machine Classification
1. According to heating type: Steam Heating UHT and Electric Heating sterilizer
2. According to material: SUS304 and SUS316L

High pressure Sterilizer
Retort sterilizer(high pressure sterilizer ) adopts casing structure, has the characteristics such as high efficiency, energy saving and simple operation. Due to the short heating time, small nutrition loss.
Sterilizer is suitable for the liquid material beverage. Such as fresh milk, fruit juice drink, wine drink, soybean milk and Chinese medicine, as well as the sticky material (for example, sweet condensed milk) upon completing with high-pressure homogenizer.
If the homogenizer is set together, autoclave sterilizer can also be used for high viscosity materials such as sugar beets and condensed milk and so on.

Please used for health &sanitation.

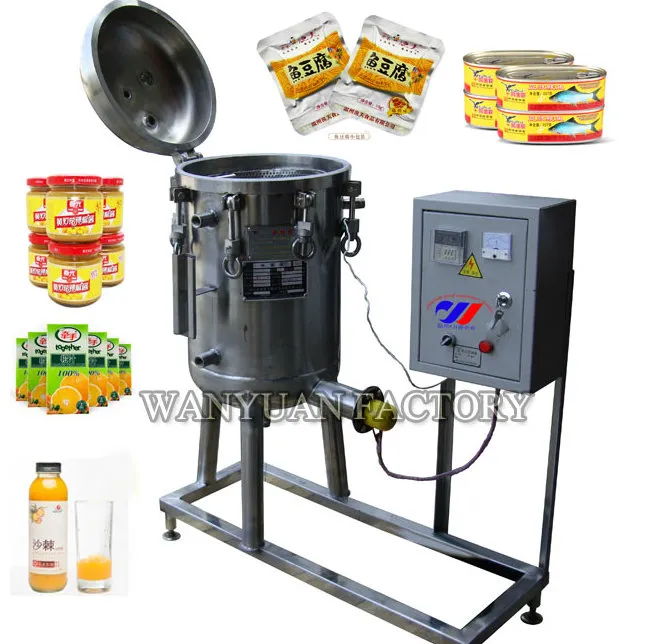

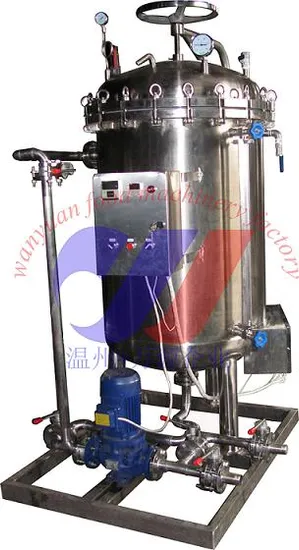

Vertical autoclave(electric heating sterilizer)
Autoclave, it's used for beverage &food industry.
1. It is small scale electric autoclave. we can do 100-500L.
2. Small land area, suited in Lab. if you need, it can install wheels at the bottom.
3. The working temperature range: 100-135C.
4. The Max temperature: 143C.
5. With control box, temperature meter, pressure meter, safe valve etc.
6. Made of stainless steel 304, outer and inner polishing to easy cleaning.
7. Electric power

If you have anywhere need to customized, please let me know!
Vertical Sterilizer Retort for Kinds of High Temperature Resistant Packaging

Wenzhou Wanyuan Food Mechanical Fatory
Here below the autocalve sterilizer retort specification:

Model	GT7C1.1
Inner Dia	DN1100
Trolley	2
Capacity	1.5 m3
Max Working Pressure	0.3 Mpa
Max Working Temperature	143 degree
Equipment Weight	650kgs
Equipment Dimensio	22000×1300×2160mm
