Fully Automatic Autoclave Sterilizers Retort for Chicken Curry

Customization:	Available
Process:	Thermal Processing
Power Source:	Steam

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

GT7C 720

Automatic Grade

Automatic

Application

Canned Food

Customized

Working Pressure of Autoclave

0.3mpa

Designed Pressure of Autoclave

0.35mpa

Design Temperature

147 Degree C

Working Temperature

121 Degree C

Usage

Canned Food, Glass Jar, Pouch

Transport Package

Wooden Case

Origin

Wenzhou China

Product Description

Fully Automatic Autoclave Sterilizers Retort for CHICKEN CURRY
1. Water Spray
2. Energy Saving
3. Uniform heat distribution, no dead angle

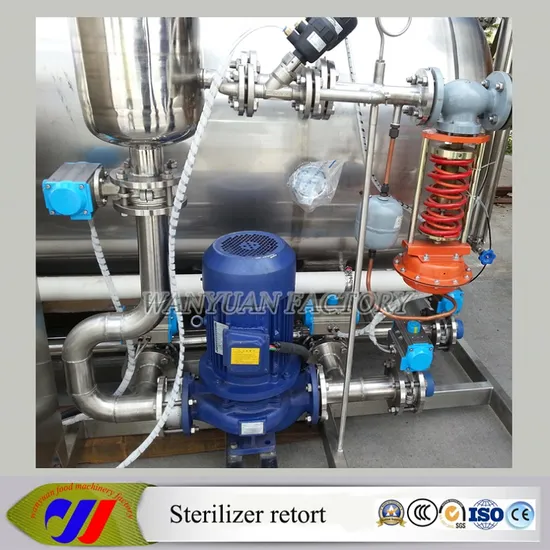

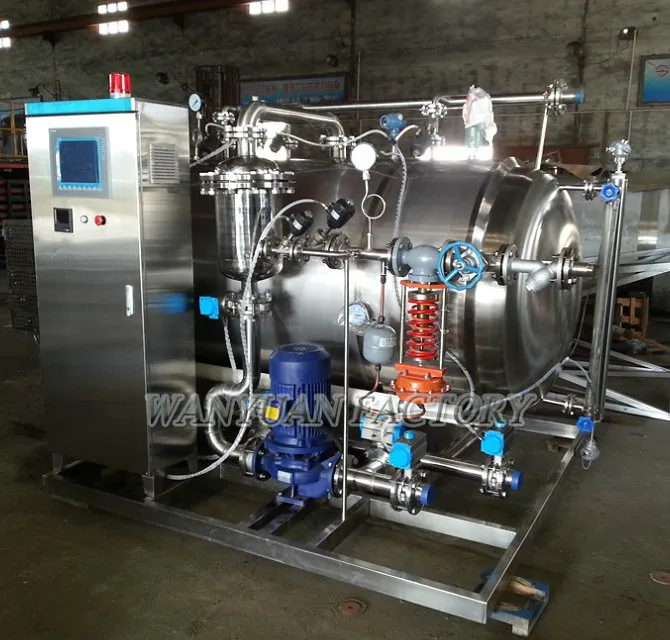

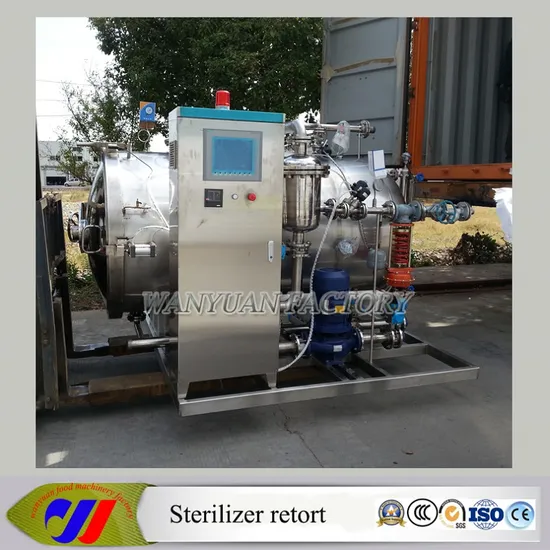

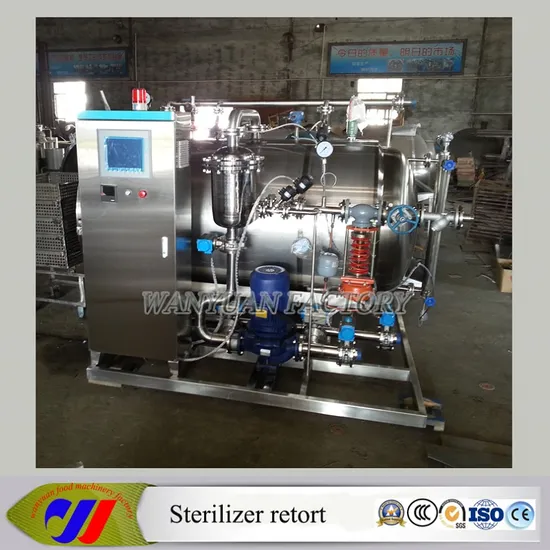

It's suited as the two-stage sterilization equipment of bag-packing or case-packing food. It is composed of technology tank, hot water, cold water tank, heat exchanger, all kinds of pump valve, connection pipe and semi-automation control system. The soft water inside the tank keeps on spraying fan-shaped and belt-shaped hot water which pose a wave-like motion to the being sterilized after it goes through the heat exchanger or after it cools off. The heat diffusion is rapid and well distributed. It can reduce the possibility that the packed goods are not artistic because of the influence of the outside water quality.

Here below retort autoclave specification

Model		GT7C 720	GT7C 1200	GT7C 2000	GT7C 2400
Category		Elementary Pressure Vessel
Internal Diameter (mm)		900	1000	1100	1200
Volume( m³)		1.2	2	3.5	4.2
Design Temperature		143 degree C
Working Temperature		123 degree C
Design Pressure		0.3 MPa
Working Pressure		0.15 MPa
Working Medium		water\steam\compressed air
Main Pressure Part Material		SS304
Welding Coefficient		0.7
Corrosion Allowance		1mm
Net Weight(kg)		600	1100	1700	2000
External Dimensions(mm)	length	2100	2800	3700	4000
	Width	1300	1450	1600	1600
	height	1650	1700	1800	1900
