Canned Fish Sterilizer Glass Jar Sterilizer Retort

Customization:	Available
Process:	Thermal Processing
Power Source:	Electric

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

GT7C 360

Automatic Grade

Semi-Automatic

Application

Packaging Food

Customized

Working Pressure of Autoclave

0.3MPa

Designed Pressure of Autoclave

0.35MPa

Design Temperature

147 Degree C

Working Temperature

121 Degree C

Usage

Canned Food, Glass Jar, Pouch

Material

Stainless Steel

Transport Package

Wooden Case

Origin

Wenzhou China

Product Description

Canned Fish Sterilizer Glass Jar Sterilizer retort
This is a small sterilizer / autoclave / sterilizer autoclave for food in glass jar (chill sauce / vegetable sauce / fish in tin can..)

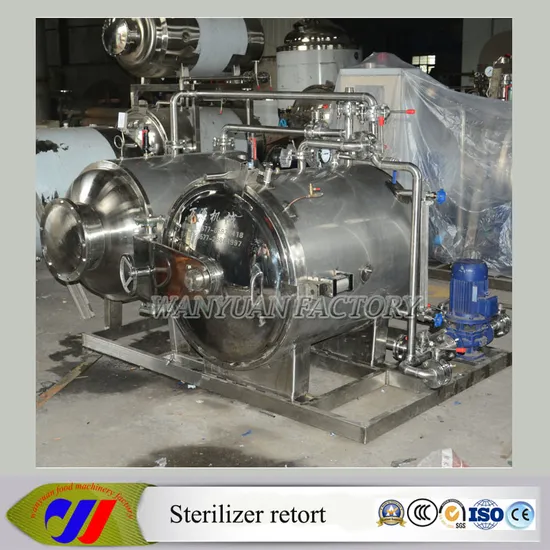

Here are some pictures of our hot sell small sterilizer for fish in glass bottle.
Photos are taken from different views in order to show you our small autoclave sterilizer.
Canned Fish Sterilizer Glass Jar Sterilizer Retort

This is manual control sterilizer retort, also we can be customized fully automatic with PLC control panel for you, please contact directly!

Canned Fish Sterilizer Glass Jar Sterilizer Retort

Here below the autocalve sterilizer retort specification

Model		GT7C 720	GT7C 1200	GT7C 2000	GT7C 2400
Category		Elementary Pressure Vessel
Internal Diameter (mm)		900	1000	1100	1200
Volume( m³)		1.2	2	3.5	4.2
Design Temperature		143 degree C
Working Temperature		123 degree C
Design Pressure		0.3 MPa
Working Pressure		0.15 MPa
Working Medium		water\steam\compressed air
Main Pressure Part Material		SS304
Welding Coefficient		0.7
Corrosion Allowance		1mm
Net Weight(kg)		600	1100	1700	2000
External Dimensions(mm)	length	2100	2800	3700	4000
	Width	1300	1450	1600	1600
	height	1650	1700	1800	1900
