1000L Jacketed Cooling and Heating Tank with Steam Heating

Customization:	Available
Process:	Thermal Processing
Power Source:	Steam Heating

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

LRG1000

Automatic Grade

Semi-Automatic

Application

Milk, Yogurt, Cheese

Customized

Working Pressure

0.09 MPa

Test Pressure

0.15 MPa

Stirring Speed

36 R/Min 0.75kw

Heating Method

Steam Heating

Material

Ss304/316

Transport Package

Wooden Case

Specification

1800*1410*2240mm

Origin

Wenzhou China

Product Description

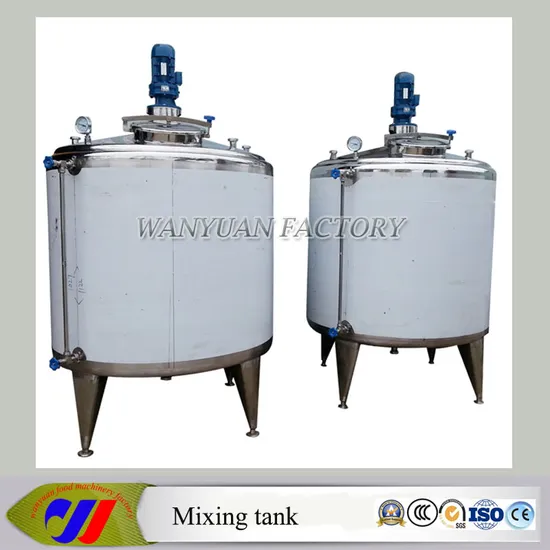

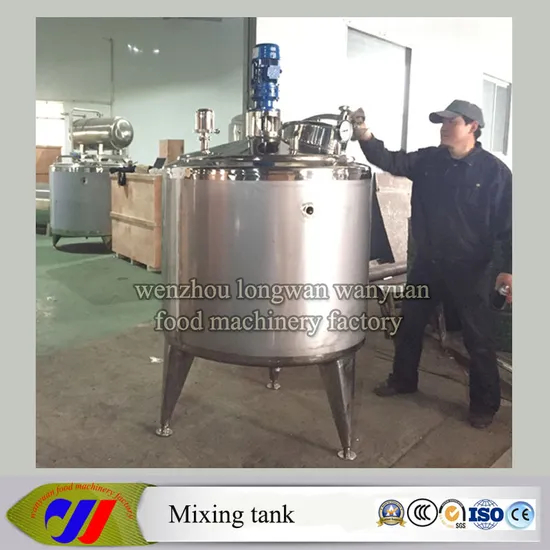

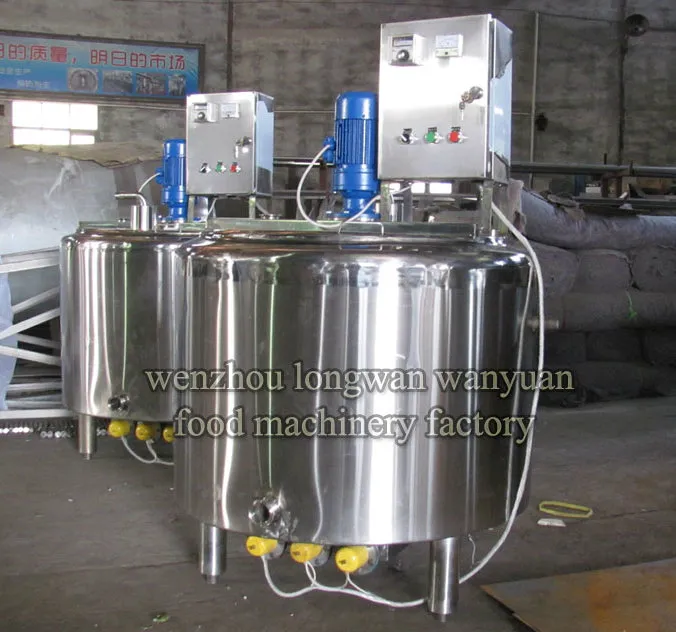

1000L Jacketed Cooling And Heating Tank
Name: Heating and Cooling Tank(with open cover)

Sanitary stainless steel Heating and Cooling Tank

1). SUS316L or SUS304
2). Can mix the liquid, fluid
3). Capaciy: 100L~10000L
4). Application: Food, beverage, pharmaceutical, chemical, etc.

Brief description
This liquid mixing tank with agitator combines the function of mixing, blending, dissolving, heating, cooling, circulation, etc. Suit for mixing and blending various materials.

Application:
The liquid mixing and blending tank is applied to reaction agitating of liquid scrubbing, textile assistant, medicine chemistry, food, beverage, perfume, perfumery compound, etc
Also applied to the products of homogenization, emulsifying, particle dispersion, etc

Feature:
1: Blending system adopts single-direction or double-direction wall scraping blending to satisfy different technological requirement
2: Frequency conversion speed adjustment.
3: Material can be heated or cooled according to tech stand mixer nological requirements
4: Electric heating or steam heating
5: Various forms of blending vanes are suitable for production of different types of products.
6: Made of imported SUS304 or SUS316L stainless steel. The tank body and pipe are subjected to mirror polishing
7: Bottom installation type dispersing head and FLUKO pipeline type emulsifying head are optional to speed up dissolution and emulsification of materials.
8: The stainless steel electric control cabinet can completely supervise the operation of equipment, and display such data as temperature and blending rotation speed, etc
9: High-speed disperse (homogenizer) strongly mixed decentralized thick, solid, liquid.
Cosmetic producing machine; Cosmetic producing machine; Cosmetic producing tank; Daily chemical stirring vessel; Detergent agitator boiler; Detergent agitator pot; Stainless steel blending pot; Stainless steel blending machine; Stainless steel blending tank; Stand mixer; Static mixer
1000L Jacketed Cooling and Heating Tank with Steam Heating

Electric heating one Steam heating one

Sanitary stainless steel Heating and Cooling Tank

volume (L)	Dimension (D× h ) (mm)	Total height (mm)	Diameter Of inlet & outlet	Heat preservation layer (mm)
500	840 × 1000	2250	38	60
600	920 × 1000	2300	38	60
700	990 × 1000	2300	38	60
800	950 × 1220	2500	38	60
900	1010 × 1220	2500	38	60
1000	1060 × 1220	2550	51	60
1500	1160 × 1500	2850	51	60
2000	1340 × 1500	2900	51	60
3000	1410 × 2000	3400	51	60
4000	1620 × 2000	3450	51	60
5000	1810 × 2000	3500	51	60
