Refrigerating Milk Cans/ Straight Milk Cooling Tank

Customization:	Available
Process:	Thermal Processing
Power Source:	Freon

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

MCT-500

Application

Milk, Yogurt

Customized

Milk Cooling Tank Capacity

100L to 10t Customized

Cooling Power

1HP ~ 24HP

Mixing Speed

36rpm

Temperature Control

Digital Temperature Control

Insulation Layer

High Density PU Foma

Minimum Temperature

0~4 Degree C

Transport Package

Wooden Case

Origin

Wenzhou China

Product Description

Straight milk cold tanks/ Milk cooling tank/ Milk cooling vessel

Milk cooling tank can be devided into vertical milk cooling tank and horizontal milk cooling tank according to the tank capacity. For small capacity, such as 500L, 800L and 1000Liter capacity milk cooling tanks, we usually make it into vertical milk cooling tanks. For the cooling capacity more than 1500L, we usually make it into horizontal milk cooling tanks.

Usage of milk cooling tank
Vertical milk cooling tank and Horizontal milk cooling tank can be used to storing and Cooling fresh raw milk on farms, as well as fluid in small milk depot, dairy plant, food, feed, as well as Pharmaceutical plants.

Milk cooling tank structure
The milk cooling tank is mainly composed of the body, agitator, cooling unit and electric Control cabinet. The milk cooling tank body is made of stainless steel, with precision Polish, good looking, easy to clean and corrosion resistance.
Outside the inner layer of the milk cooling tank is a kind of jacket. This kind of dimple jacket will send the coolant to all part of the milk cooling tank is shortest time.
Out side this dimple jacket, there is a layer of heat preservation. This insulation layer will help to keep the milk in a low level.

Milk cooling tank pictures:
Horizontal milk cooling tank

Refrigerating Milk Cans/ Straight Milk Cooling Tank

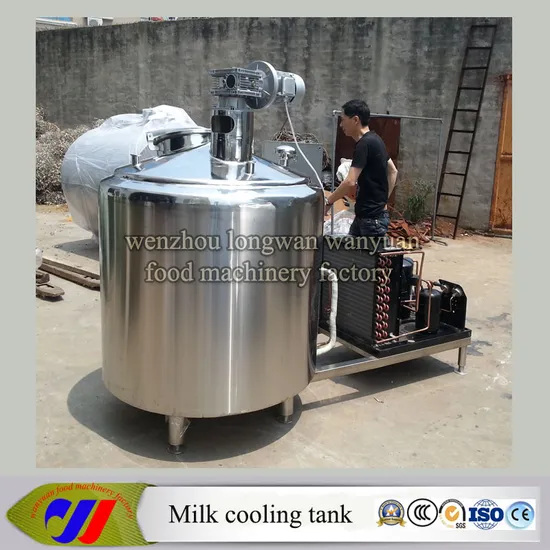

Vertical milk cooling tank
Refrigerating Milk Cans/ Straight Milk Cooling Tank

Wenzhou Wanyuan Food Mechanical Factory- - Cow Farm Bulk Milk Cooling Tank

Here below the milk cooling tank specification

Capacity	Geometry	A mm	B mm	C mm	D mm	E mm	F mm	Motorpower HP	Compressor power HP	Weight kg
200	Vertical	1400	300	750	1350	850	2000	0.33	0.75	185
300	Vertical	1400	300	880	1480	850	2000	0.33	0.75	200
500	Vertical	1550	300	1054	1654	1000	2150	0.5	1.5	230
1500	Vertical	1900	300	1350	1950	1350	2500	1	3	280
2000	Vertical	1950	300	1600	2200	1350	2550	1	2 x 3	660
3000	Horizontal	2700	1510	1635	2320	-	-	1	2 x 5	860
5000	Horizontal	3430	1590	1700	2400	-	-	1	2 x 7	1060
6000	Horizontal	4200	1590	1700	2400	-	-	1	2x7 + 5	1150
7000	Horizontal	4200	1725	1825	2485	-	-	1	3 x 7	1250
8000	Horizontal	4200	1850	1950	2610	-	-	1	3x7 + 3	1400
