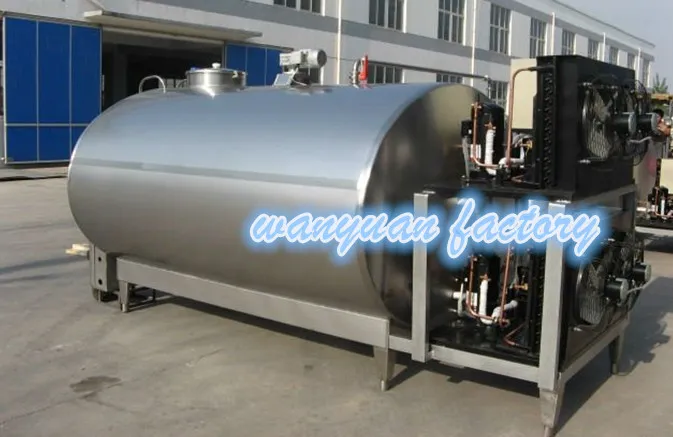

Cheapest Milk Cooling Tank Stainless Steel Machine

Customization:	Available
Process:	Frozen and Chilled
Power Source:	Freon

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

MCT-2500

Automatic Grade

Semi-Automatic

Application

Milk, Yogurt

Customized

Model No

Horizontal Milk Cooling Tank

Milk Cooling Tank Capacity

100L to 10t Customized

Cooling Power

1HP~24HP

Mixing Speed

36rpm

Export Markets

Global

Transport Package

Wooden Case

Specification

SS304/SS316

Trademark

Wanyuan

Origin

Wenzhou China

HS Code

8479819000

Production Capacity

5000

Product Description

Cheapest milk cooling tank
1. Cooling speed: Meet ISO5708 2B
2. Compressor: Copeland-compliant scroll compressor.
3. Tank body: SUS304

Milk cooling tank can be devided into vertical milk cooling tank and horizontal milk cooling tank according to the tank capacity. For small capacity, such as 500L, 800L and 1000Liter capacity milk cooling tanks, we usually make it into vertical milk cooling tanks. For the cooling capacity more than 1500L, we usually make it into horizontal milk cooling tanks.

Milk cooling tank structure
The milk cooling tank is mainly composed of the body, agitator, cooling unit and electric Control cabinet. The milk cooling tank body is made of stainless steel, with precision Polish, good looking, easy to clean and corrosion resistance.
Outside the inner layer of the milk cooling tank is a kind of jacket as the picture below. This kind of dimple jacket will send the coolant to all part of the milk cooling tank is shortest time.
Out side this dimple jacket, there is a layer of heat preservation. Thsi insulation layer will help to keep the milk in a low level.

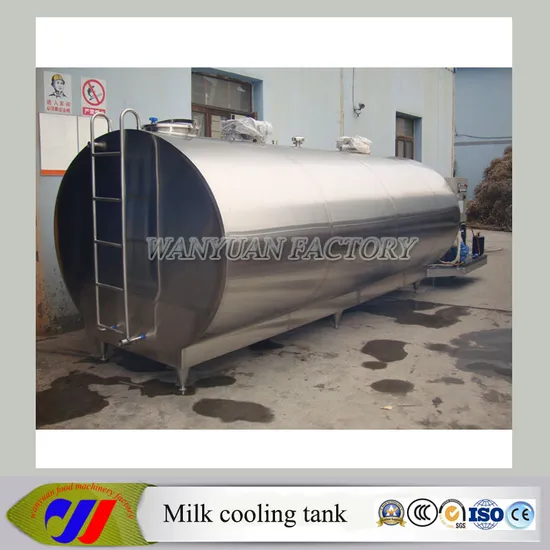

Cheapest milk cooling tank
Cheapest Milk Cooling Tank Stainless Steel Machine

Wenzhou Wanyuan Food Mechanical Factory- - Milk cooling tank
Here below the milk cooling tank specification

Milk cooling tanks specification
Model	Capacity(L)	Cooling capacity(W)	Stirring speed ( R/MIN)	Match power(KW)	dimension(LMH)
MCT-0.5	500	3500	36(24)R/MIN	1.5	220013501150
MCT-1	1000	6900	36(24)R/MIN	3	275011501500
MCT-1.5	1500	10000	36(24) R/MIN	4	300013501550
MCT-2	2000	13000	36(24)R/MIN	5	320015001600
MCT-3	3000	17800	36(24)R/MIN	6.5	350016501700
MCT-5	5000	34000	36(24)R/MIN	13	400019502000
MCT-6	6000	34000	36(24)R/MIN	13	420022002100
MCT-8	8000	42000	36(24)R/MIN	18	480024002400
MCT-10	10000	65000	36(24)R/MIN	24	500026002500
