Sanitary Pipe and Fitting for production
Sanitary Pipe Fitting(pipe fitting, stainless steel pipe fitting, fitting)
Product Description
Sanitary Pipe Fitting(pipe fitting, stainless steel pipe fitting, fitting)
We can supply a wide range of sanitary pipe fittings such as elbows, tees, unions, clamps, pipe hangers and reducers according to DIN, SMS, ISO9001 and IDF standards.
1. Product scope:
Steel tee, straight steel tee, lateral steel tee, Y type tee, equal tee, reducing tee, forged
Tee, socket welding tee, screwed tee, threaded tee, manifold etc.
2. Product Application:
Our products are used in wide industry fields such as oil and gas, nuclear power,
Petrochemical, electric power, chemical industry etc.
Product description
1. Material: Stainless steel 304, 316L
2. Standard: 3A, SMS, DIN11851, ISO, BS 4825, BPE, AS, ASME B16.9-2007 and so on, we also would like to produce the non-standard fitting according customer request.
3. End connection: Welding, ferrule clamped, screw and so on.
4. Non-Magnetic: With 1040 degree high temprature(heat) anneal treatment
5. Surface treatment: Polishing: Hairline( Satinize 180g, 240g), Mirror(320g, 400g), Pickling or according customer request
Delivery: By sea/air/express, we can ship it as customer requirement, we keep the certain qty stock for standard products.
If you have more details or request about our products, you can contcat me feel free!
Wenzhou wanyuan food machinery factory

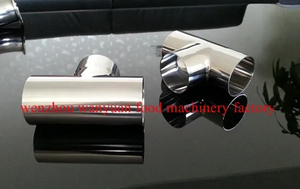

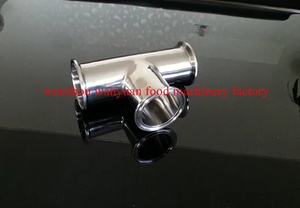

The below is pipe tee specification:
| NPS | A | B |
| 1 | 33.5 | 25.4 |
| 1-1/4 | 41 | 31.8 |
| 1-1/2 | 48.5 | 38.1 |
| 2 | 60.5 | 50.8 |
| 2-1/2 | 83.5 | .63.5 |
| 3 | 88.5 | 76.3 |
| 3-1/2 | 103.5 | 89.1 |
| 4 | 127 | 101.6 |
