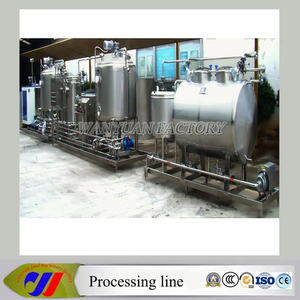

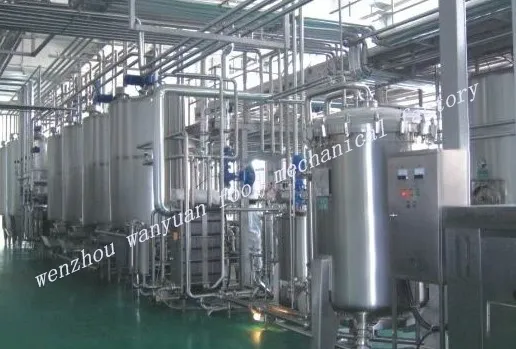

500L/H Small Milk Production Line/ Turnkey UHT milk processing line
The whole milk processing line consists of the following systems:
1. Water treatment system
2. Suger melt system
3. Sterilizer system
4. Filling and packing system
5. CIP cleaning system
7. After treatment equipments, like conveyor, package or pallet, etc.
8. There are other assistant equipments used such as steam boilers, air compressor, cold water unit, etc.
9. Installation materials for the process pipline, utility pipeline as well as electrical installation are provided.
Filling and packing types can be decided by the customer then designed accordingly.
Our company can design customized milk processing lines in accordance to the customers' requirements. The production capacity varies from 1000L/h to 10000L/h according to customer's need
Note: Jimei milk production lines can be widely used to produce UHT milk, sterilized milk, setted milk, stirred milk, milk drink, yogurt, ice cream, condensed milk and milk powder, and so on.
For the whole set of milk processing line, you may need the following machine:
Name |
Description |
Plate pasteurizer |
SUS304, Q=500L/h, input temperature: 5 ° C, sterilizing temperature: 85 ° C, hold 30s, output temperature: 5 ° C, sterilizing temperature control automatic. |
Emulsify tank |
SUS304, V=0.5m 3 , double layer, heat insulation, thermometer, CIP clearing head, high-speed emulsify head. |
Balance tank |
SUS304, V=0.5m 3 , single layer, CIP clearing head |
Homogenizer |
SUS304, Q=0.5m 3 /h, 30MPa, 5.5kw |
Milk pump |
SUS304, Q=5m 3 /h, H=24m, 1.5kw |
Double tube filter |
SUS304, 150mesh |
Air compressor |
Max pressure: 6.5bar, air displacement, Q=20-25L/min |
Chiller plant |
Cooling water output temperature: 2 ° C, Q=3000L/h |
Frame, pipe and valve |
SUS304 |
Plastic bag packing machine |
SUS304, 250ml, 1500bag/h |
boiler | |
