Product Description

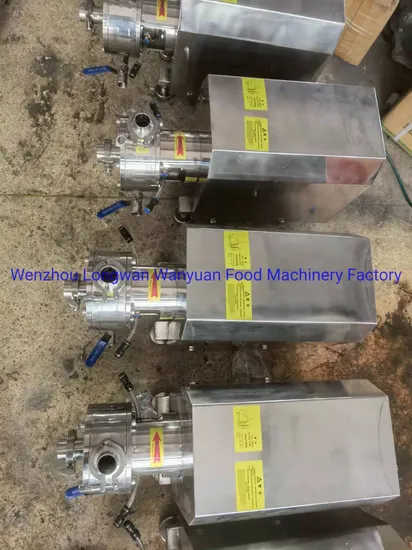

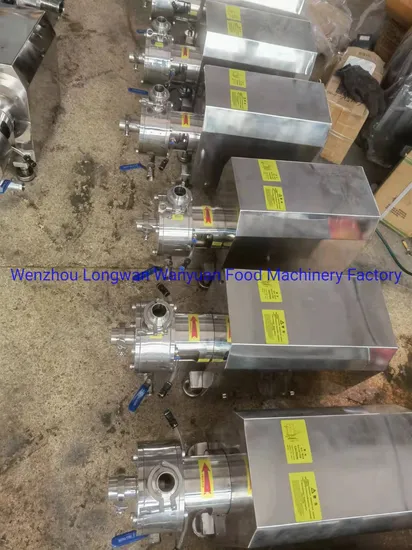

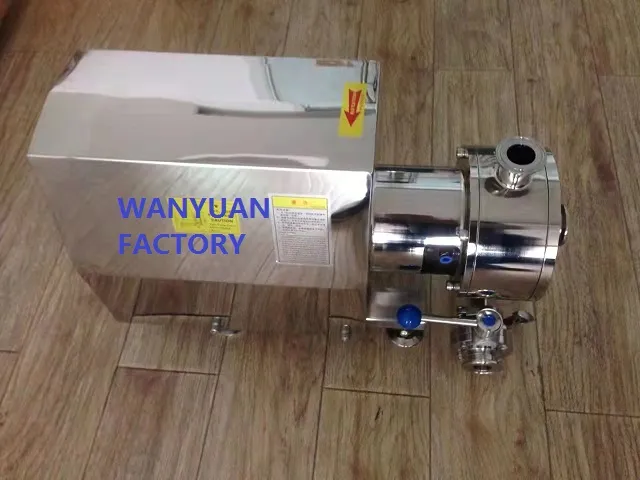

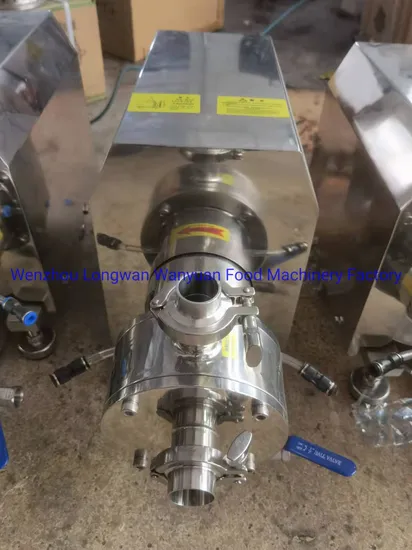

High Shear Inline mixer
Working Method:
High Shear Inline mixer working principle: The rotor and stator work together to generate strong shearing power during speedy running to realize mixing, smashing and emulsion. Inline mixer could also be fixed on pipeline to do continuous work. The standard components are pump chamber, rotor and stator.
Inline mixer is applied to emulsify and disperse kinds of liquids continuously, transmits low viscosity material and mix powder and liquid. It is widely used in the field of Daily, Beverage, food, Pharmacy, Chemical industry etc.
Features of the Inline mixer
1. All wetted parts are grade 304 or 316 Stainless steel
2. Mechanical Seal for Sanitary Operation
3. Quick opening for easy cleaning
4. Hygienic Design.
5. Explosion-proof ABB Motor 3 Phase
6. Two Machine in one, an emulsifier and a centrifugal pump

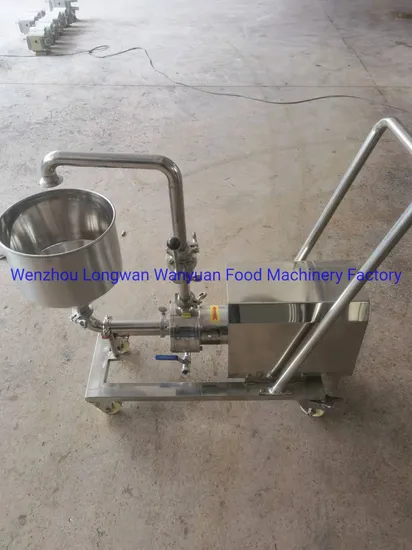

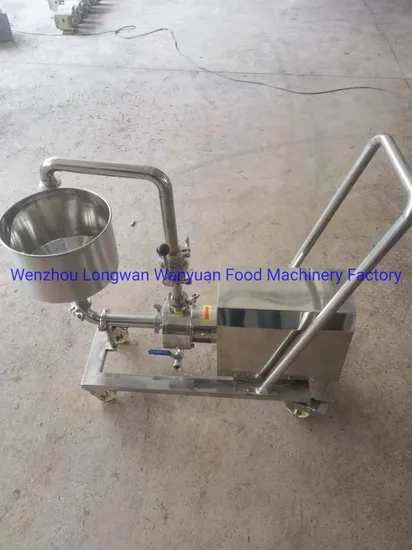

with Inline mixer and batch mixer working together, The efficiency of emulsification process would be much higher.
If you need more information about our Inline mixer, Please contact us.
We will send you detail information of our various model type and price.
| model | Motor power(kw) | Rotating speed(rmp) | Flow range(m³/h) | Outlet pressure(mpa) | Inlet | Outlet |
| SRH-80 | 1.5 |
2900 | 0-1.5 | ≤0.2 | DN32 | DN25 |
| SRH-100 | 2.2 | 0-3 | ≤0.2 | DN38 | DN32 |
| SRH-130 | 4 | 0-4 | ≤0.2 | DN50 | DN40 |
| SRH-150 | 5.5 | 0-5 | ≤0.2 | DN50 | DN40 |
| SRH-165 | 7.5 | 0-8 | ≤0.2 | DN50 | DN40 |
| SRH-180 | 11 | 0-12 | ≤0.2 | DN60 | DN50 |
| SRH-190 | 15 | 0-18 | ≤0.2 | DN60 | DN50 |
